Product Description:

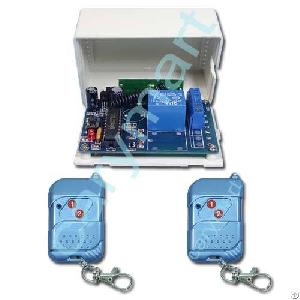

This DC power rf remote control switch operates in toggle, momentary and latched control mode (set the
mode as you like freely). It is great for hard to reach lights or other electrical devices, remote distance can be 100m (theoretically). Widely used for gate remote control, motor remote control, garage door remote control, light remote control, etc.
Receiver:
Model No.: S1U-DC09 / S1U-DC12 / S1U-DC24
Channel: 1 CH
Control Modes: Toggle, Momentary, Latched
Decode: Fixed code or Learning code
Power Supply (Operating Voltage): DC12Vą1V (S1U-DC12), DC9Vą1V (S1U-DC09), DC24Vą1V (S1U-DC24)
Working Voltage Range of Relay: AC110~240V or DC0~28V
PCB size: 68mm x 48mm x 20mm
Case size: 75mm x 55mm x 30mm
Static Current: ≤6mA
Maximum Working Current: 5A
Transmitter:
Model No.: C-2
Channel: 2 CH
Remote Control Distance: 100m / 300ft (theoretically)
Encode: Fixed code by soldering
Unit size: 58mm x 39mm x 16mm
Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)
Note:
The theoretical distance is 100m, which shall be operated in an open ground; no barriers and no any interference. But in actual operation, it is hindered by trees, walls or other obstacles, or interfered by other signals. Therefore, the actual distance can not reach 100m. If you need longer range, please choose other series of remote control, such as CB Serie (1000m/3000ft); Or you can add the External Extend Antenna on the receiver for improve the range.
