Product Description:

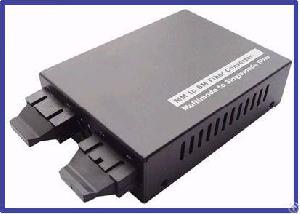

fast/Gigabit multimode to single mode fiber mode converter. available in all distance and all fiber types
and kinds rates 10/100/1000M, 155M/622M/STM-1/STM-4.
Features:
supporting single fiber by double directions transmission;
Comply with any agreement between different rates.
Fulfilling medium convert between single mode fiber and multi-mode fiber or extending fiber transmission distance, Supporting wavelength be 850nm, 1310nm or 1550nm.
Supporting medium convert between 100M fast speed Ethernet, 1000M Ethernet, 155M~1.25G ATM, SDH or extending transmission distance.
The longest transmission distance of multi-mode is 2KM; The longest transmission distance of single-mode is 120KM.
As optical receiving and sending model with good optical character, electrical character, date transmits steady, and it can work for long time..
The transmission of optical mode 155M is above 30db and optical mode 1.25G is above 25db.
Parameters:
Optical interface: SC, FC or ST (optional).
optical fiber type:
Multimode : 50/125um, 62.5/125um, 100/140um, wavelength:850 or 1310nm
Single-mode: 8.3/125um, 8.7/125um, 9/125um, 10/125um, wavelength :1310 or 1550nm
Transmission distance: multimode with 2KM, single mode up to 120KM.
Transmission rate: 10/100Mbps/155Mbps/622 Mbps/1000 Mbps/1.25Gbps/2.5Gbps
Indicator light: it indicates power supply's condition, also suggests single-fiber and multi-fiber link condition.
Power supply: 1)input 100v~260VAC
2)input 36V-72VDC, output 3W.
. Power:<3W.
. Size: 150mm(L) X200mm(w)x30mm(H)
. Work temperature :0°C~50°C
. Storage temperature: -20°C~80°C
. Humidy:5%~90% without condensing
