Product Description:

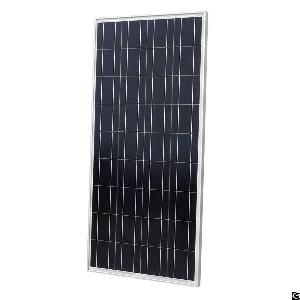

These poly solar panels compose of high-efficiency solar cells (approximately 17.4%) with quality silicon
material for high module conversion efficiency and long term output stability and reliability. Virtually maintenance free. Designed for RVs, cabins, homes, boats, backup power, remote power use and other small power generation needs.
Features
1. Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance, Withstand high winds (2400 Pa) and snow loads (5400 Pa). IP65 rated junction box provides complete protection against environmental particles and low-pressure water jets.
2. Pre-drilled holes on the back of the panel allow for fast mounting and securing. Compatible with different mounting systems such as Z-brackets, Pole Mounts, and Tilt Mounts.
3. High module conversion efficiency. Ideal output: 500Wh per day (depending on the availability of sunlight). Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.
4. Advanced encapsulation material with multilayered sheet laminations to enhance cell performance and provide a long service life. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
Specification
Rated power 100w
Voc 22.41
Vop 17.9V
Short circuit current (Isc) 6.2A
Working current (Iop) 5.59A
Output Tolerance ±3%
Temperate coefficient of Isc (010+/- 0.01 )%/ ℃
Temperate coefficient of Voc – (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc -0.47%/℃
Temperature range -40℃ to +80℃
Frame Heavy duty aluminum
Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage 12V
Dimensions (L x W x H)mm 1000*665*35mm
Weight 19.85lbs (9kg)
Warranty 25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate .
5-year material and workmanship warranty.
Application
1. Courtyard lighting.
2. Small household lighting system.
3. Street lighting.
4. Portable solar power.
5. All small power electrical devices & small PV system.
