Product Description:

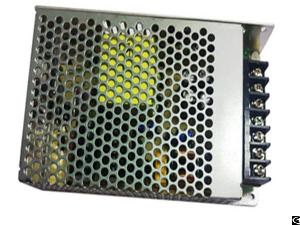

The rated output power of TPC/LPD-100-XS series is 90-110.4W,input voltage range:90-264VAC,
output voltage : 5V, 12V, 15V, 24V, 28V, 36V, 48V, High reliability, precision, effificency, ultra-small size, no external heat sink required, stable output voltage and etc, with short circuit, over-load, over-voltage protection, Widely used in telecommunications, industrial control, instrument, data acquisition, signal control, New Energy, Security, and other electronic systems.
Part Number Input Output Efficiency
Volatge(VAC) Voltage(VDC) Pre-set voltage
Rated current(A) Current range(A) Rated power(W)
Rated Range values
Tpc/lpd-100-5s 220 90-264 5 5.00-5.10 18.0 0-18 90 86
Tpc/lpd-100-12s 220 90-264 12 12.00-12.20 8.5 0-8.5 102 87
Tpc/lpd-100-15s 220 90-264 15 15.00-15.20 7.0 0-7.0 105 88
Tpc/lpd-100-24s 220 90-264 24 24.00-24.20 4.5 0-4.5 108 90
Tpc/lpd-100-28s 220 90-264 28 28.00-28.20 3.6 0-3.6 100.8 90
Tpc/lpd-100-36s 220 90-264 36 36.00-36.20 3.0 0-3.0 108 90.5
Tpc/lpd-100-48s 220 90-264 48 48.00-48.20 2.3 0-2.3 110.4 90.5
