10g Sfp Transceiver
Posted at: Offers to Sell and Export | Posted on: Wednesday 3 May 2017 2:58 am | Poster last visit: Wednesday 3 May 2017 | Targeted Countries: Russia
Product Category: Main
» Information Technology Broadcasting and Telecommunications
» Data Voice or Multimedia Network Equipment or Platforms and Accessories
» Optical network devices
» Synchronous digital hierarchy SDH telecom equipment
» 10g Sfp Transceiver
Product Description:
Product Description

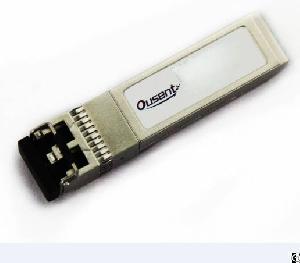

OS-SP96-8503M series multi-mode transceiver is SFP+ module for duplex optical data
communications such as 10GBASE-SR and 10GBASE-SW. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for multi-mode fiber and operates at a nominal wavelength of 850 nm.
This module is designed for multi-mode fiber and operates at a nominal The transmitter section uses a Vertical Cavity Surface Emitted Laser (VCSEL) and is a Class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Product Feature
Operating Data Rate up to 10.3Gbps
850nm VCSEL Laser Transmitter
300m with 50/125 µm MMF
Single 3.3V Power Supply and TTL Logic Interface
Hot-Pluggable SFP Footprint Duplex LC Connector Interface
Power Dissipation < 1.0W
Dispersion tolerance up to 40ps/nm over G.651 Operating Temperature
Standard: 0°C ~+70°C
Extended:-10°C ~+85°C
Compliant with MSA SFP+ Specification SFF-8431
Compliant with IEEE802.3ae 10GBASE-SR/SW
Product Specification / Models
Os-sp96-8503md
Application / Models
10GASE-SW at 9.953Gbps
10GASE-SR at 10.3125Gbps
Other Optical Links
Other Information
Order Information
Part No. Data Rate Fiber Distance Interface Temp. DDMI
OS-SP96-8503M Up to 10.3Gbps MMF 300M LC Standard YES
OS-SP96-8503MI Up to 10.3Gbps MMF 300M LC Extended YES
Company Contact:
Contact Name: Lee Nong
Company Name: Ousent Technologies
Email:
Tel: +8613427905207
Fax:
Street Address: Xili
Shenzhen, Guangdong 518085
China
Website: http://www.ousent.com
Member name: ousenttech
Country:
China
Member Since: 03 May 2017
Total Leads: 2 ousenttech Import Export Business Leads
Business focus: Optical Trasceiver, Media Converter
Chat:
Verify: Safe Import Export Tips
OS-SP96-8503M series multi-mode transceiver is SFP+ module for duplex optical data
communications such as 10GBASE-SR and 10GBASE-SW. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for multi-mode fiber and operates at a nominal wavelength of 850 nm.
This module is designed for multi-mode fiber and operates at a nominal The transmitter section uses a Vertical Cavity Surface Emitted Laser (VCSEL) and is a Class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Product Feature
Operating Data Rate up to 10.3Gbps
850nm VCSEL Laser Transmitter
300m with 50/125 µm MMF
Single 3.3V Power Supply and TTL Logic Interface
Hot-Pluggable SFP Footprint Duplex LC Connector Interface
Power Dissipation < 1.0W
Dispersion tolerance up to 40ps/nm over G.651 Operating Temperature
Standard: 0°C ~+70°C
Extended:-10°C ~+85°C
Compliant with MSA SFP+ Specification SFF-8431
Compliant with IEEE802.3ae 10GBASE-SR/SW
Product Specification / Models
Os-sp96-8503md
Application / Models
10GASE-SW at 9.953Gbps
10GASE-SR at 10.3125Gbps
Other Optical Links
Other Information
Order Information
Part No. Data Rate Fiber Distance Interface Temp. DDMI
OS-SP96-8503M Up to 10.3Gbps MMF 300M LC Standard YES
OS-SP96-8503MI Up to 10.3Gbps MMF 300M LC Extended YES
