Product Description:

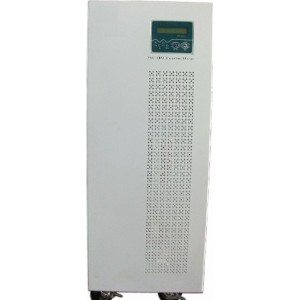

We offer the industrial frequency Off-Grid inverters from 300W to 50KW.
Welcome to inquiry us for more
details!
Model
10000w
Input
Rated capacity(W)
10000w
CommercialPower range(VAC)
100/110/120/127/220/230(+25%,-35%)
Frequency(Hz)
60/50±10%
Output
AVR voltage range(VAC)
100/110/120/127/220/230±10%(Auto-sensing)
Transfer time
<15ms
Waveform
Pure sine wave
Frequency
Commercial power supply: shared frequency with the commercial inversion state:60/50±0.5
protection
overload
Input/output over high or low protecting;low battery protecting;surge and pike-currents protecting; overload protecting 100%-120% 30sec; >120% 100ms; >150%, 50ms output short circiut <150ms
Battery
DC Voltage
192vdc
Type
Sealed, maintenance-free lead acid
Recharge current
20A(Maximum)
Battery protection
Automatic self-test, discharge protection, over-chargeing protected, smart management system.
size
Size(mm) D×W×H
880*310*770
Net weight(kg)
115kg
Gross weight(kg)
120kg
