Product Description:

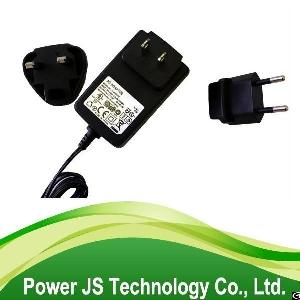

12v-24v adaptor wall charger interchangeable plug ac adapter
Jsinx04
Products highlights :
Peak load
4.8A for normal input
MTBF 50K hours @ 25℃ ( MIL - HDBK - 217F)
ESD : air discharging ± 15KV, contact discharging ± 8KV
Operating Temp Range (-5℃ to 40℃)
Key Applications of 15W series
Its suitable for an extremely wide Range of applications, including :
General power supply。
Output required by mobile hard disk, multimedia player and other electronic product
Set - top - box
Adsl
Hard disk drive
Audio & Video product
Household appliance
Input :
Input Voltage : 90 to 264 VAC
Frequency : 47-50 / 60-63hz
Input current : 0.8A (Max) 120 / 240VAC
Inrush current : 50A Max. 240VAC
Leakage current : 0.25 mA Max
Output :
Output Voltage : 3 - 30 VDC
Power : 24W Max.
Output current : 0.3 - 3A
Over voltage protection
Over current protection
at 110 - 200% of lo and Auto-recovery
Electronic short circuit protection
Ripple & noise 20 MHZ band width:200mV
Efficiency 84.26% Measured at 25℃
Operating temperature 0 ~ 40℃ Free convection
Operating humidity 10 - 90% RH Non Condensing
No load power less than 0.3w
Sea level Non - operating temperature 20 ~ 80℃
Features :
Single Output .
Meet Engergy Star V.
Changeable AC plug.
Universal Input Voltage.
Special AC Plug Design to Reduce Stock
Application :
Universal AC input.
High efficiency.
Regulated output.
Short circuit protection.
Optional output connectors.
Outputs are available at request .
Super Mini Size and Easy Portable.
Constant Current For Battery Charge.
CEC V Efficiency Regulations Compliance.
Specification :
Over voltage protection : Yes. Auto-recovery.
Over current protection : Yes. Auto-recovery.
Short Protection : Auto Recovery
Load regulation : ±5% variations from minimum to maximum output current.
Operating temperature : 0°C ~ + 40°C.
Storage temperature : -40°C to + 85°C.
Operating Relative Humidity : 5% to 95% non - condensing.
Withstand Voltage : 4300VDC from input to output .
Insulation Resistance : 50Mohm minimum from output to ground .
EMI Requirements : CE : Emission:EN55022; EN61000-3-2, 3/ Immunity; IEC61000-4-2, 3, 4, 5, 6, 11 FCC 47 CFR .
Safety : (A)UL60950-1 CSA C22.2 (B)EN60950-1; IEC60950-1.
