Product Description:

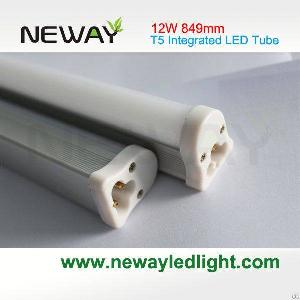

12W 849MM Integrated LED T5 Tube Specification
01. T5 Integrated LED Tube Constitute: LED T5 lamp, built-in
LED drive power, T5 cooling pad, cable, screws and clamps
02. LED Tube Cooling: Finned aluminum heat sink design
03. Pin Interface Type: T5, G5
04. LED Type: SMD 3528
05. LED Quantity: 168pcs
06. Chip Brand: Epistar
07. Color Temperature: Warm White 3000K-3500K, Natural White 4000K-4500K, Pure White 5000K-6000K, Cold White 6500K-7000K, Custom
08. Input Voltage: AC85V-265V(50Hz/60Hz), Custom
09. Rated Power: 12W
10. Luminous Flux: 1020LM
11. CRI: ≥70Ra
12. Sizes: (L)849*(W)22*(H)27MM
13. Beam Angle: ≥120°
14. Power Type: Built-in non-isolated * Optional: Built-in Isolated or External Power Supply
15. Power Factor: PFC≥0.9
16. Power Conversion Efficiency: ≥85%
17. Cover Material: Aluminum+PC Cover
18. Surface Color: Milk White, Custom Proliferation, Clear, matte stripes
19. PCB Circuit Board Material: FR4 Fiberglass Circuit Boards
20. IP Level: IP40
21. Working Temperature: -20℃~+40℃
22. Storage Temperature: -30℃~+50℃
23. Storage Humidity: 10%-90%RH
24. Life Span: ≥50000 Hours
25. Certificates: CE, RoHS
26. Warranty Period: 3 Years
12W 849MM Integrated LED T5 Tube Packing Details
Packing: White Box packing, Custom Color Box
Inner Box Size: (L)859*(W)27*(H)32MM
Inner Box N.W./G.W.: 0.43KGS/0.47KGS
Outer Box Sizes: (L)970*(W)210*(H)215MM
Outer Box N.W./G.W.: 9.4KGS/10.2KGS
Qty/Box: 20 PCS/Box
