Product Description:

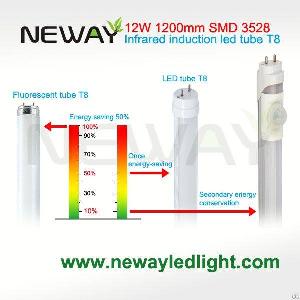

12W PIR Sensor T8 LED Tube 1200MM Specification
Product Type: Underground parking garage floor hallway
corridor indoor lighting, indoor lighting energy-saving renovation of the 24-hour lighting project
01. Intelligent Sensing Method: PIR Sensor
02. The Infrared Induction Lamp Constitute: Infrared sensor PIR, smart drive power supply, LED fluorescent tube
03. Core Sensing Devices: NICERA PIR Sensor, Fresnel lens
04. Sensing Distance: Straight-line Distance of 6-8 Meters, a Height of 3-4 Meters Hanging High Suspension Sensing Area for the Range of 8m in Diameter
05. Sensing Angle: 140°
06. Lighting Delay Time: 30 seconds, and adjustable for 35 seconds, 45 seconds, 60 seconds different lighting time delay
07. Speed of Response: 0.3 seconds
08. Full Brightness Power: 12W
09. Micro-bright Dormant Power: 3W, Dormant Adjustable Two States Micro-light Mode: 1. Power consumption can be adjusted to completely shut down all off state after full brightness, 2. Power consumption adjustable for different micro-light sleep standby power, for example: 2W, 4W, 5W ... full brightness micro-light state.
10. LED Type: SMD 3528
11. LED Quantity: 168pcs
12. Color Temperature: Warm White 2800K-3200K, Natural White 4000K-4500K, Pure White: 5000K-5500K, Cold White: 6000K-6500K
13. Working Luminous Flux of Full Light: 954LM
14. Micro Bright Sleep Luminous Flux: 218LM, In accordance with the adjustment of the power of the set time, the recovery to 10%, 20 %, 30% the micro light flux of the different brightness
15. Input Voltage: AC190-240V, AC100-140V, Custom
16. Input Frequency: 50Hz, 60Hz
17. CRI: ≥70Ra
18. Sizes: (L)1198MM*(Dia.)26MM(not include the PIN stitch length), (L)1212MM*(Dia.)26MM(not include the PIN stitch length)
19. Lamp Shape: Oval, circular (optional)
20. Beam Angle: 160°
21. Lamp Holder: T8, G13
22. Power Factor: PF≥0.9
23. Power Conversion Efficiency: ≥85%
24. Cover Material: Aluminum+PC Cover
25. Surface Color: Milk White, Frosted, transparent, stripes, mist (optional)
26. PCB Circuit Board Material: FR4 Fiberglass Circuit Boards
27. Working Temperature: -20℃~+40℃
28. Storage Temperature: -30°C~+50°C
29. Storage Humidity: 10%-90%RH
30. Life Span: ≥50000 Hours
31. Certificates: CE, RoHS
32. Warranty Period: 3 Years
12W PIR Sensor T8 LED Tube 1200MM Packing Details
Packing: White box packing, Custom color Box
N.w.: 0. 32kgs/pc
Outer Box Sizes: (L)1260*(W)205*(H)185MM
Outer Box G.W.: 9.3KGS
Qty/Box: 25 PCS/Box
