1310nm / 1550nm Analog Laser Diode Module With Pigtail

Posted at: Offers to Sell and Export | Posted on: Monday 30 June 2008 7:48 am | Poster last visit: Friday 20 July 2018 |

Product Category: Main » Electronic Components and Supplies » Discrete semiconductor devices » Diodes » Laser diodes » 1310nm / 1550nm Analog Laser Diode Module With Pigtail


Product Photo:

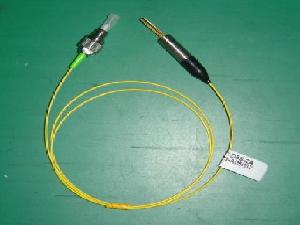

1310nm 1550nm analog laser diode module pigtail

Similar Products Catalog:
Products Photos Catalog 1310nm 1550nm Analog Photos Catalog

Product Description:

Feature

InGaAsP/InP MQW LD

Very low threshold


Low background noise

Built-in Optical Isolator

Apply

for CWDM

Optical and Electronic Characteristics

Rated Output Power 2-4mW

Threshold Current Typ 10mA

Operating Current Typ 30mA

Forward Voltage 1.2v

Central Wavelength 1310nm/1550nm

Side-mode suppression Ratio Typ 45dB

Tracking Error -1-1dB

Monitor Current 0.1-0.8mA

Monitor Dark Current <0.1uA

Relative intensity noise Typ -155dB/Hz

Isolation >30dB

RF Bandpass Flatness <4dB

I M D 3 Typ -60dBc
