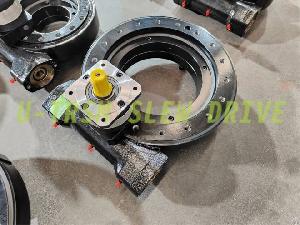

14inch High Accuracy Worm Gear Slew Drive Pe14
Posted at: Offers to Sell and Export | Posted on: Wednesday 26 July 2023 3:42 am | Poster last visit: Thursday 28 November 2024 |
Product Category: Main
» Manufacturing Components and Supplies
» Bearings and bushings and wheels and gears
» Gears
» Worm gears
» 14inch High Accuracy Worm Gear Slew Drive Pe14
Product Description:
Item: PE14
Output Torque: 8kN.m
Tilting Moment Torque: 67.8kN.m
Holding Torque: 48kN
Static Axial
Rating: 555kN
Static Radial Rating: 222kN
Dynamic Axial Rating: 133kN
Dynamic Radial Rating: 117kN
Gear Ratio: 85:1
Tracking Precision: ≤0.17°
Weight: 64kg
Rotation center diameter: 355.6mm
3D model: Yes
Material: 42CrMo/ 50Mn+nodular cast iron+other steels
Warranty: 1 Year
Feature: Worm gear slewing drive, low speed, self-locking
IP Grade: IP65
Color : According to customers' requirements
Service: Design, Manufacturing, Customized
Slewing drive products can be divided into open type and closed type according to the closed condition of the transmission. According to different transmission forms, they can be divided into gear type and worm gear type. U-TRSM has these types of products and users need to make choices based on their application requirements and use environment.
Generally, the closed structure is used in humid, medium dust or corrosive gas environment and those with high environmental protection requirements that do not allow the leakage of lubricating grease. The closed environment can effectively prevent impurities from entering the slewing drive body and improve the machine service life. However, when there is too much dust in the environment and the slewing drive is completely placed in the dust, the sealing parts that play a role of sealing will accelerate wear and quickly fail. At this time, the closed environment may not be convenient for maintenance and parts replacement. However, it is more appropriate to use open structure slewing drive with the selection of tooth surface hardening to improve the durability of the parts. In addition, the open structure is convenient for cleaning impurities. If the use and maintenance can be done well, it may not have a shorter life than the closed structure, so all factors must be considered comprehensively in the process of product selection.
Company Contact:
Contact Name: Guoguo
Company Name: Unique Transmission Equipment（luoyang）co., Ltd
Email:
/
Tel: +86-379-64915181
Fax:
Street Address: No.22 Binhe Road,
New & High Tech Industry
Development Zone, Luoyang Area Of
China (henan) Pilot Free Trade Zone,
471000
Website: https://en.u-transmission.com
Member name: UniqueTransmission
Country: China
Member Since: 16 June 2021
Total Leads: 196 UniqueTransmission Import Export Business Leads
Business focus: Slew Drive, Slewing Ring
Chat:
Verify: Safe Import Export Tips
