Product Description:

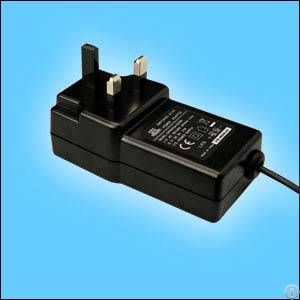

15V2.5A switching power adapter with UK plug, 3PIN plug -in power adapter, switching mode power supplies,
wall mount type power supplies for UK market .
Specification details:
Description
Market:England
Wall Mount Type
Meet CEC Regulations
ROHS Compliance
Efficiency Level V
General Specifications
Maximum output power: 45W
Input voltage: 90~264Vac
Input Frequency: 47Hz~63Hz
Input Current: 1.2A
Leakage Current (max): 0.25mA
No Load Power Consumption: Less than 0.3W
Efficiency: Meet CEC
Ripple noise (max): +1 persent Voltage Max
Line Regulation: ±1 persent
Load Regulation: ±5 persent
Hold-Up Time: 16mS
Over Voltage Protection: 120 persent
Operating Temperature: 0~40 degree
Storage Temperature: -20~85 degree
Storage Humidity: 5 persent RH~95 persent RH
Withstand voltage: AC 3KV
Burn-In Test: 100% Full Load
MTBF: 50000Hours
Weight: 175g
Dimensions
LxWxH: 96.9x45.5x34.5 (mm)
