Product Description:

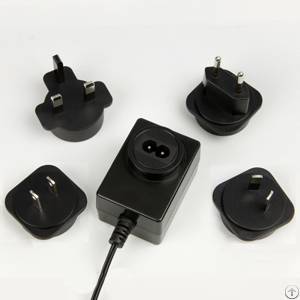

16V power adaptor with interchangeable plugs, US/EU/AU/UK plug power adapter, with UL.CUL, FCC, PSE,
CE, GS, CB certification, ROHS, efficiency level V .
Specification details:
Description
Market:USA, Canada, Japan, Europe, China, England, Australia
Interchangeable Plug Type
Meet CEC Regulations
ROHS Compliance
Efficiency Level V
General Specifications
Maximum output power: 18W
Input voltage: 90~264Vac
Input Frequency: 47Hz~63Hz
Input Current: 0.35A
Leakage Current (max): 0.25mA
No Load Power Consumption: Less than 0.3W
Efficiency: Meet CEC
Ripple noise (max): +1% Voltage Max
Line Regulation: ±1%
Load Regulation: ±5%
Hold-Up Time: 16mS
Over Voltage Protection: 120%
Operating Temperature: 0~40°C
Storage Temperature: -20~85°C
Storage Humidity: 5%RH~95%RH
Withstand voltage: AC 3KV
Burn-In Test: 100% Full Load
MTBF: 50000Hours
Weight: 120g
Dimensions
LxWxH: 59.5x43x34.5 (mm)
