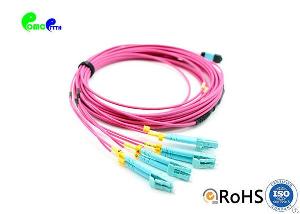

1m 8f Mpo To Lc Pc Duplex Patch Cable Ruggedized With Excellent Exchangeability Om4 2.0mm Fanout
Posted at: Offers to Sell and Export | Posted on: Friday 3 April 2020 8:22 am | Poster last visit: Friday 3 April 2020 | Targeted Countries: Brazil | France | USA
Product Category: Main
» Power Generation and Distribution Machinery and Accessories
» Electrical wire and cable and harness
» Electrical cable and accessories
» Fiber optic cable
» 1m 8f Mpo To Lc Pc Duplex Patch Cable Ruggedized With Excellent Exchangeability Om4 2.0mm Fanout
Product Description:
MPO - LC 8F Trunk Cable provide a transition from multi-fiber cables to individual fibers or duplex connectors.
Known as MTP breakout cable or MTP fan-out cable as well, it has a single MPO connector on one end that breaks out into 4-12 connectors, and these connector types can be LC, SC, ST, etc. It’s available in 4, 6, 8, or 12 fiber cable configurations with lengths from 0.5-100 meters and other customized lengths. MTP harness cable provides a reliable, cost-effective cabling system for migrating from legacy 10G to higher speed 40G/100G Ethernet. The following are
the advantages of MTP harness cable:
Space saving—The active equipment and backbone cable are good for saving space.
Easy deployment—Factory terminated system saves installation and network reconfiguration time.
Reliability—High standard components are used in the manufacturing process to guarantee the product quality.
MPO - LC Fiber Patch Cord are terminated with MPO - LC 8F Trunk Cable connector on both end. All of OMC’s MTP Connectors are from USCONEC.
MPO - LC 8F Trunk Cable 8F harness cable's Specification:
Connector A MPO Female (pinless) Connector B LC UPC Duplex
Fiber Mode OM3 50/125μm Wavelength 850/1300nm
MTP Connector IL 0.35dB Max(0.15dB Typ.) SC Connector IL ≤0.2dB
MTP Connector RL ≥20dB SC Connector RL ≥20dB
Attenuation at 850nm ≤2.3dB/km Attenuation at 1300nm ≤0.6dB/km
Jacket OD 3.0mm Fan-Out Diameter 2.0mm
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C
Cable Jacket LSZH Fiber Count 8 Fibers
Company Contact:
Contact Name: Kanglly Wong
Company Name: Omc Industry Co., Limited
Email:
Tel: 18682182825
Fax:
Street Address: 9f No 2 Bldg, Guole
Tech Park, No.1 Lirong Rd, Dalang
Street, Longhua District Shenzhen,
Guangdong 518000 China
Website: https://www.omcftth.com
Member name: OMCINDUSTRY
Country:
China
Member Since: 28 November 2019
Total Leads: 6 OMCINDUSTRY Import Export Business Leads
Business focus: Fiber Optic Patch Cord, Fiber Optic Pigtail, Ftth Tools
Chat:
Verify: Safe Import Export Tips
