Product Description:

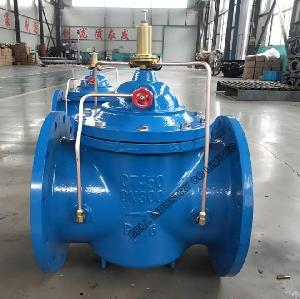

200X Pressure reducing valve Features
200X Pressure Reducing Valve is a throttling element whose local
resistance can be changed, that is, by changing the throttling area, the flow rate and the kinetic energy of the fluid can be changed, resulting in different pressure loss, thus achieving the purpose of pressure reduction. Relying on the control and adjustment system regulation, the fluctuation of the pressure after the valve and the spring force will balance, so that the pressure after the valve within a certain error range to maintain a constant.
200X Pressure reducing valve specification:
Available Material: Ductile Iron, Carbon Steel, Stainless Steel
Size Range: DN50-DN600 2”-24”
Pressure Range: PN10, PN16, 150Lb, 300Lb
1. Body/Bonnet: Brass material
2. Spring: SS304
3. Stem: SS / Bronze
4. Disc Retainer: DI/SS/Bronze
5. Seat: SS/Brass/Bronze
6. Seal Rings: NBR/EPDM/Viton
7. Pilot: Stainless Steel or Brass
8. Pipe or Tubes: Copper or Stainless Steel
9. Working Pressure: PN10/16/25
10. Connection: Flanged acc. To EN1092.2, ISO 7005-2, ANSI
