Product Description:

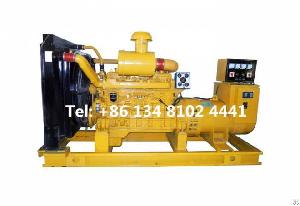

Product overview of Shangchai generator set
1. Use environment: altitude ≤3000 meters, ambient
temperature -40℃~+55℃, relative humidity ≤85% (25℃);
2. Basic performance of the unit: rated voltage 400V/230V, rated frequency 50Hz, rated power factor 0.8 (hysteresis), protection class IP22, insulation class H.
3. Load characteristics of the unit: resistance type, motor type (asynchronous AC motor), thyristor rectifier filter type, UPS type, etc.
4. The unit is equipped with a 10-hour base fuel tank or a split fuel tank. The fuel tank is equipped with a low fuel level switch and an alarm signal is issued at 20% and 50% (which can be set independently).
5. Integral crankshaft, gantry type body, flat cut connecting rod, short piston, compact and reasonable appearance;
6. A new type of constricted combustion chamber is adopted to increase the fuel injection pressure, improve the combustion process, and achieve environmental protection indicators: the emission value of exhaust pollutants meets the requirements of JB8891-1999, and the noise meets the requirements of GB14097-1999 and has a margin;
7. The optimized design of the lubrication and cooling system reduces the number of external pipelines and parts, and uses the overall brushless alternator to greatly improve the three leakage and greatly enhance the reliability;
8. It is matched with J98 and J114b exhaust gas turbochargers, which has strong plateau working ability. When used in plateau areas with an altitude of 5000m, the power drop is less than 3%;
9. The 138 series diesel engine is an improved version of the 135 series, and the basic parts are common to the 135. It is produced by Wuxi Power Engine, a large national enterprise.
