Product Description:

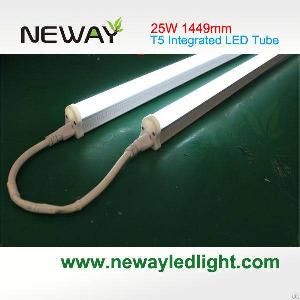

25W 1449MM T5 Integrated LED Tube Specification
01. T5 Integrated LED Tube Constitute: LED T5 lamp,
built-in LED drive power, T5 cooling pad, cable, screws and clamps
02. LED Tube Cooling: Finned aluminum heat sink design
03. Pin Interface Type: T5, G5
04. LED Type: SMD 3528
05. LED Quantity: 360pcs
06. Chip Brand: Epistar
07. Color Temperature: Warm White 3000K-3500K, Natural White 4000K-4500K, Pure White 5000K-6000K, Cold White 6500K-7000K, Custom
08. Input Voltage: AC85V-265V(50Hz/60Hz), Custom
09. Rated Power: 25W
10. Luminous Flux: 2125LM
11. CRI: ≥70Ra
12. Sizes: (L)1449*(W)22*(H)27MM
13. Beam Angle: ≥120°
14. Power Type: Built-in non-isolated * Optional: Built-in Isolated or External Power Supply
15. Power Factor: PFC≥0.9
16. Power Conversion Efficiency: ≥85%
17. Cover Material: Aluminum+PC Cover
18. Surface Color: Milk White, Custom Proliferation, Clear, matte stripes
19. PCB Circuit Board Material: FR4 Fiberglass Circuit Boards
20. IP Level: IP40
21. Working Temperature: -20℃~+40℃
22. Storage Temperature: -30℃~+50℃
23. Storage Humidity: 10%-90%RH
24. Life Span: ≥50000 Hours
25. Certificates: CE, RoHS
26. Warranty Period: 3 Years
25W 1449MM T5 Integrated LED Tube Quality Inspection
Product Features
1.Newaylighting Research and Design of integrated LED T5 Tube: LED light source holder with cooling aluminum body of the three merged into one structure integrated design, will fully protect the the LED conduction cooling requirements and service life guarantee. And is easy to install use three holes seamlessly on the connector, Connect the T5 integrated LED Tube and lamp without dark areas, and a unique design concept can adapt to the ongoing development of the LED lamps.
2. High Power Factor PFC, high power conversion efficiency of stable internal drive power, fast start, no flicker, no different from the sound, longer life, related to common fluorescent tube replacement frequency is more than 20 times the LED integrated T5 lamp RoHS environmental protection, no flicker, no UV, no infrared radiation, low heat, no mercury and lead elements, the use of the process does not produce harmful substances.
The comparative advantages of traditional T5 fluorescent tube
1.Energy saving and environmental protection: high power, high efficiency, saving 75-80 % compared to the traditional T5 fluorescent light source no UV radiation, no electromagnetic interference, no mercury, lead harmful elements.
2.Economy: the long life of over 50, 000 hours, compared to traditional fluorescent lamp life 10 times longer product life greatly reduce the cost.
3.Comfort: flicker-free start to reduce eye irritation, precision optical PC cover, minimal glare.
4.Convenient: optical grade plastic and special oxygen pole Yang processing aluminum alloy lamp body design, no ballast and starter, installation is more convenient
25W 1449MM T5 Integrated LED Tube Packing Details
Packing: White Box packing, Custom Color Box
Inner Box Size: (L)1459*(W)27*(H)32MM
Inner Box N.W./G.W.: 0.7KGS/0.75KGS
Outer Box Sizes: (L)1590*(W)210*(H)215MM
Outer Box N.W./G.W.: 15KGS/15.7KGS
Qty/Box: 20 PCS/Box
