Product Description:
ZHAOHAN PUMP WORKS was founded in 1998, located in Chinas biggest Industries center. The company is professional
vacuum pump manufacturer specializing in producing and supplying full range of 2BV and 2BE series liquid ring vacuum pump, vacuum compressor and vacuum pump parts for pump maintenance. All our pumps are 100% interchangeable with Siemens both in dimension and performance.

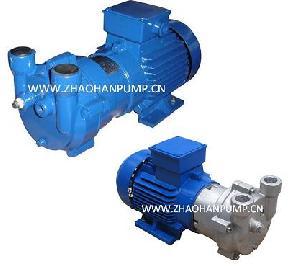

Our 2BV series Liquid ring vacuum pumps are suitable for pumping gases and steam. Its suction pressure can reach 33mbar (abs) (i.e. 97 % vacuum degree). If the transformer oil is used as the operating liquid, these pumps are called oil ring vacuum pump and the suction pressure can reach 6.7mbar (abs) (i.e. 99 % vacuum degree). So the oil ring vacuum pumps can replace the reciprocated vacuum pumps completely. When the liquid ring vacuum pumps work under the condition near the limited vacuum for a long time, we will add our cavitations protection pipe to get rid of the screaming and protect the pump.
When the compressors work, the maximum pressure is 0.26MPa(abs). And the discharge pressure is higher, the power is bigger. So it is necessary to get the data of the discharge pressure is to choose the proper motor.
2BV2-Ex, 2BV6 series Liquid ring vacuum pumps and compressors are mainly used for pumping the explosive gases or work in the flammable and explosive environment. The technical parameter of each type is the same as the corresponding type of the 2BV2 or 2BV5 series products.
2BV series stainless steel pumps can be used under the conditions with higher requirements for the corrosive-proof or the lustration.
Max. Suction Capacity: 27-500 m3/h
Main Type for 2BV series vacuum pump and compressor
2BV 2 series: 2BV2 060, 2BV2061, 2BV2 070, 2BV2 071
2BV5 series: 2BV5 110, 2BV5 111, 2BV5 121, 2BV5 131, 2BV5 161
2BV6 series: 2BV6 110, 2BV6 111, 2BV6 121, 2BV6 131, 2BV6 161
2BV series of vacuum pumps adopt the advance international technology with the close-coupled design. With the advantages of high reliable performance, easy maintenance, lower noise, high efficiency and energy saving, this series of pumps are widely applied in fields of chemical industry, papermaking, and metallurgy industry and so on.
Due to its competitive price and higher performance, our pump is best choice for Siemens and some Italy pump replacement.
Welcome client from home and abroad to contact us for future cooperation.
