Product Description:

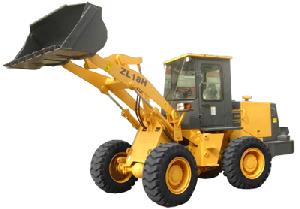

Specifications of Wheel Loader ZL18H:
Welcome to choose Topall machinery (construction equipment).
Length(with
bucket on ground)
1 Length(with bucket on ground) 5710(mm)
2 Width(to outside of wheels) 2010(mm)
3 Bucket width 2070(mm)
4 Height(To the top of the cab) 2975(mm)
5 Wheel base 2300(mm)
6 Tread 1600(mm)
7 Min. ground clearance 342(mm)
Main Technical Specification
1 Rated load 1800(Kg)
2 Operating weight 6550KG
3 Rated bucket capacity 1.0(m3)
4 Max. breakout force 57kN
5 Max. dump clearance 2520(mm)
6 Dump reach 960(mm)
7 Dump angle at any position ≥45°
8 Digging depth(with bucket bottom horizontal) 146(mm)
9 Max. turning radius
(1) Outside of bucket 4850(mm)
(2) Center of rear wheel 4420(mm)
10 Pivot angle frame 38±1°
11 Oscillating angle of rear axle ±11°
12 Lifting time of bucket ≤5(sec.)
13 Lowering time of bucket ≤3.2(sec.)
14 Dumping time ≤2 (sec.)
15 Traveling speed(Km/h), 2 forward and 2 reverse
(1) 1st gear forward 5.75
(2) 2nd gear forward 23.86
(3) 1st gear reverse 5.85
(4) 2nd gear reverse 24
Diesel engine
1 Model Cummins B3.3
2 Type Direct injection. Turbocharged. Water cooling
3 Rated output 60 (kW)
4 Inter-bore of cylinder/stroke 95 /115(mm)
5 Total exhaust of cylinder 3.3(L)
6 Voltage of starting motor 12/24 (V)
7 Rated speed 2200(r/min)
8 Max. Torque 259(N.M)
9 Starting type Electric
10 Min. specific fuel consumption 225(g/Kw.h)
11 Net weight 255(kg)
Transmission System
1.Torque Converter
1 Model
2 Type 3-elements.single stage
3 Torque ratio 3.06
4 Cooling type Pressure oil circulating
2.Transmission case
1 Model
2 Type power shift, spur gear constantly in mesh
3 Gear shift position 2 Forward and 2 reverse gears
4 Model of walking pump CBG1016(counterclockwise)
3.Axle and Tire
1 Type of main reducer spiral bevel gear, single stage
2 Gear ratio of main reducer 5.83
3 Type of final reducer Single stage planetary
4 Gear of ratio of final reducer 5.6
5 Gear ratio 32.66
6 Size of tire 16/70-24-10PR
Working Device Hydraulic System
1 Model of working pump CBG 1016
2 System pressure 160(kgf/cm2)
3 Model of distribution valve ZS1-L20E-T-30
4 Priority-valve YXL-F160L-N7
5 (D*L)Dimension of lifting cylinder Ф90*50*548(mm)
6 (D*L)Dimension of tilting cylinder Ф110*63*409(mm)
Steering System
1 Type Middle articulated frame. Full-hydraulic Steering
2 Model of steering pump CBG 1032
3 Model of steering gear BZZ5-315+FKAR-1253016
4 System pressure 125(kgf/cm2)
5 Dimension of steering cylinder Ф63*45*320(mm)
Brake System
1 Type of traveling brake Air over oil activate 4 wheel brake with caliper disc brake
2 Air pressure 5.9~7.9kgf/cm2)
3 Type of parking brake Hand brakeFlexible shaft control clamp brake
Oil Capacity
1 Fuel(diesel) 110(L)
2 Engine lubricating oil 16(L)
3 Oil for converter and gear box 20(L)
4 Oil for hydraulic system 100(L)
5 Oil for driving axles(F/R) 26(L)
6 Oil for brake 1.5(L)
