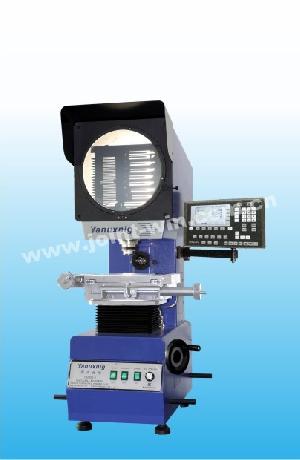

Profile projector CM-300C/D series are precise and excellent non-contact optical measuring
instrument integrated with optical, mechanical, electronical technology. It is widely used in the field of mechanism, meter, electronic, rubber industry for quality control, it can measure all kinds of surface and profile of complicated work-pieces, such as cam, screw thread, gear, perform milling cutter and so on, and it is an effective metrical and analytic system for education, research institute and lab.
The Specifications:
Model
Items CM-300C CM-300D
Work-stage The size of glass work-stage(mm) 306*206 356*206
The size of glass work-stage(mm) 196*125 262*154
X.Y axis travel (mm) 150*100 200*100
Z axis travel (mm) 85
Mini displaying value(mm) 0.001 (digital display)
Projection screen Size (mm) Ø308, effective range≥Ø300mm
Rotary range 0 ~ 3600
Angle resolution 1’ or 0.01º
Lifting system 45 0 helical gear guide lifting system
Objectives Magnification 10X(Standard) 20X(Option) 50X(Option) 100X(Option)
Object view Ø30mm Ø15mm Ø6mm Ø3mm
Working distance 78.33mm 44.93mm 27.63mm 23.60mm
Instrument illumination Transmission and reflection light source: 24V/150W-halogen lamp
Power AC110V/220V; 50Hz/60Hz
Accuracy 3 + L/50 (um)
Dimension (Lx W x H) 570*770*1180mm
Weight 150Kgs
Data processor LED Functional Digital Readout SDS5-3PJ
