Product Description:
30W junction box triac dimmable LED driver 12v/24v china LED driver for sale constant current led driver
supplier

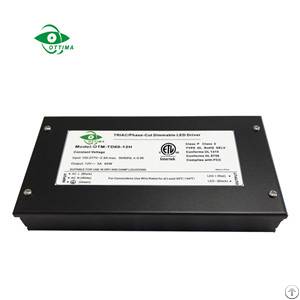

30w 12v 24v triac dimming constant voltage LED driver ac to dc with mental junction box
Feature:
Junction box triac dimmable LED driver
Input Voltage: 100-277Vac or 180-240Vac
Pf: 0.98
Dimming range: 0-100%
Protection: short circuit/over loading/over temperature
PMW output, not change the color index
Full protection case, for dry, damp location
Flicker free
Triac/forward and reverse phase (leading and trailing edge)/MLV/ELV dimmer
Cooling by free air convection
7 years warranty
Certificate: CE, RoHs, C-tick, SAA, SELV, ETL, TUV, FCC
30w 12v 24v triac dimming constant voltage LED driver ac to dc with mental junction box
Junction box LED driver Specification:
Part Number OTM-TDJ30-PH12 OTM-TDJ30-PH24
Power 30W
Input voltage 100-277Vac or 180-240Vac
Output voltage 12Vdc 24Vdc
Output current 2.5A 1.25A
Dimmable Triac dimmable
IP grade IP54
PF >0.95
Dimension 165*90*26mm
Weight 0.95kgs
Pcs/carton 20pcs/carton
Certificate CE, RoHs, C-tick, SAA, SELV, ETL, TUV, FCC
Warranty 7 years warranty
Label We can print your logo free on the led driver
