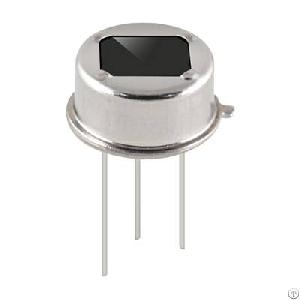

Product Description:
Overview
Senba is the specialist PIR manufacturer for more than 15 years. We are the most advanced factory
with complete categories. With strong R&D center, there are digital type and analog type, dual elements and four elements for you choose. The market cover domestic market, Korean, Amertica, Turkey and Europe.
Feature
Simplified Circuitry with Fully Integrated Sensor
Robust Design Against False Starts
Technical Data
1.Maximum Ratings
Characteristics Symbol My. Value Max. Value Unit Remarks
Working Temperature TST -20 85 °C
Max.current for pin Into -100 100 mA
Storage Temperature TST -40 125 °C
2.Working Conditions (T=25°C, Vdd=3V,Except other requirements)
Characteristics Symbol Min. Type Max. Unit Remarks
Supply Voltage V DD 2.2 3 2.7 V IR = 0.5mA
Working Current I DD 9 9.5 11 μA
Sensitivity VSENS 90 μV
Output REL
Output Low Current In OL 10 mA VOL<1V
Output High Current 1 NC -10 mA VOL>(VDD-1V)
Lock time T OL 2 s
On-time T OH 2 3600 s
Output REL
Output Low Current 10 mA VOL<1V
Output High Current 1 mA VOH> (VDD-1V)
Oscillator & Filter
Low pass filter cut-off frequency 7 Hz
High pass filter cut-off frequency 0.44 Hz
Oscillator frequency on Chip FCLK 64 kHz
Applications
Sensory Switch
The long distance PIR sensor adopts high-performance infrared detector. As long as human cross through its detection range, the infrared switch generates an electrical signals.
Faq
1.How long do motion sensor lights stay on?
Most people set their motion detection lights so they will stay on for about one to two minutes.
2 .Do motion sensors save electricity?
Motion sensing switches do have some “phantom” energy use. According to this study, motion sensor switches use about a watt of energy on standby mode (23 hours a day) and 5 watts on active mode (about an hour a day). This trims a bit off of your overall savings.
