Product Description:

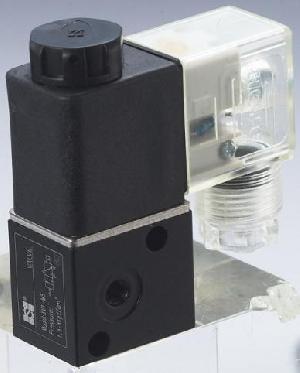

3V1-06 solenoid valve
Hs code: 84818010
Specifications are as below:
1.Fluid: Air
2.Action type:
Direct action
3.Ambient temp: -10~60º C
4.Fluid temp: 5~60º C
5.Port: 1.0mm
6.Lubrication: No need
7.Working pressure: 0~0.8MPa
8.Proof pressure: 1.2MPa
9.Power consumption: AC: 4.5VA DC: 3.0W
10.Protection: IP65
11.Miring form: Lead or box
12.Body material: Aluminum alloy
13.Frequency: 10/s
14.Insulation: Class F
15.Response time: 50ms.
