Product Description:

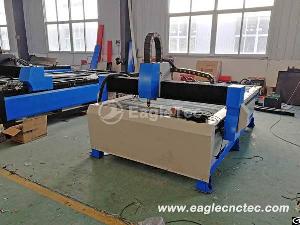

4x8 CNC Plasma Cutter with Rotating Pipe Cutter for Large Pipe Cutting
Jinan EagleTec Machinery Co.,
Ltd.
The rotating pipe cutter can hold 300mm diameter pipe maximum; length can be up to 2500mm. About plane table, working size is 1300x2500mm, in English unit it is 4x8 feet.
With plasma torch height controller: EA-1325PLT standard version includes the T.H.C, which allows the 4x8 cnc plasma cutter with rotating pipe cutter can get quality cut even on uneven metal sheets. The working principle is that, during cutting, the plasma torch head will automatically rise and fall as the sheet surface goes up and down.
Free plasma software provided with machine: FastCAM plasma cutting software English version is provided together with the machine for free.
Free plasma consumables: the package includes 20 pieces nozzles in two size, each size 10 pcs; and 20 pieces electrodes.
4x8 cnc plasma cutter with rotating pipe cutter Technical Parameter
Model EagleTec EA-1325PLT
Machine Type round tube metal and sheet metal cut solution
Construction Type heavy duty, standard size
Plane Cutting Size 1300x2500mm (4x8 feet)
Round Tube Cutting Size Dia.300mm x 2500mm Long
Plasma Cutting Thickness 1.5 ~ 12mm
Linear Guide square type
Drawers on Side without
Plasma Table Type burn table with smoke removing function
Plasma Source 85 amp, Hypertherm - USA
CNC Controller STARFIRE
Communication Code G Code
Communication interface USB
Arc Voltage Torque Height Controller Include
Driving Motor Stepper
Transmission Rack and pinion
Travelling Speed 8, 000 mm/min
Plasma Voltage AC380V, 3Ph
Plasma Controller Voltage AC220V, Single Ph
CNC Plasma Cutting Software FASTCAM in English
