Product Description:

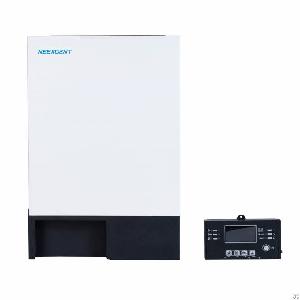

This is an upgraded multi functional inverter/charger, combining functions of inverter, solar charger
and battery charger to offer uninterruptible power support in portable size. Support Bluetooth for mobile monitoring, and its detachable LCD display module offers user-configurable and easy-accessible button operation such as battery charging current, AC/ solar charger priority, and acceptable input voltage based on different applications.
• Support Bluetooth for mobile monitoring (Android App available).
• Detachable LCD control module with multiple communications
• High efficiency pure sine wave inverter(PF=1); Wide PV input range
(120V de -500V de) 80A MPPT SCC; Intelligent 3stage 60A AC battery charger.
• Surges to 2X continuous power for 5 seconds for motor loads.
• Programmable Utility and Solar output usage timer and prioritization.
• Support operation without battery, supply power from Grid or PV ifbattery not available.
• Auto restart while AC is recovering.
• Field serviceable with replacement boards and spare parts.
Model:NG5532VMIII
Rated power:5500va/5500w
Voltage:230 VAC
Sesectabte Voltage Range:170-280 VAC (For Personal Computers);90-280 VAC (For Home Appliances)
Frequency Range:50 Hz/60 Hz (Auto sensing)
AC Vottage Regulation (Batt. Mode):230 VAC + 5%
Surge Power:11000VA
Efficiency (Peak):90%-93%
Transfer Time:10 ms (For Personal Computers);20 ms (For Home Appliances)
Waveform:Pure sine wave
Batten Voltage:48VDC
Floating Charge Voltage:54VDC
Overcharge Protection:63VDC
Solar charger type:MPPT
Max. PV Array Open Circuit Voltage:500VDC
MPP Range @operatng Voltage:120-450VDC
Max. PV Array Power:6000W
Max. Solar Charge Current:100A
Max. AC Charge Current:60A
Max. Charge Current:80A
Dimension, DxWxH(mm) :115x300x400
Net Weight (kgs):10
Communication interface:USB RS232 RS485 Bluetooth Dry-contact
Humidity:5% to 95% Relative Humidity (Non-condensing)
Operating Temperature:-10℃ to 50℃
Storage TempGrature:-15℃ to 60℃
