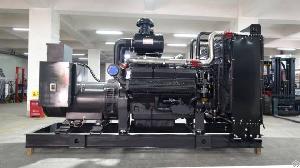

500kw 625kva Shangchai Sdec Generating Set
Posted at: Offers to Sell and Export | Posted on: Saturday 6 July 2024 3:55 am | Poster last visit: Saturday 21 September 2024 |
Product Category: Main
» Power Generation and Distribution Machinery and Accessories
» Batteries and generators and kinetic power transmission
» Power generators
» Diesel generators
» 500kw 625kva Shangchai Sdec Generating Set
Product Description:
500KW 625KVA Diesel Generator Set Datasheet
Genset model DB-500GF
Prime power 500kW 625kVA
Standby
power 550kW 688kVA
Rated voltage(V) 400/230 (customizable)
Rated current(A) 900A
Power factor 0.8
Frequency(Hz) 50
Speed(rpm) 1500
Phase: 3 phase 4 wire
Noise level: 105dB at 7m ( open type diesel genset)
75dB at 7m(silent type diesel genset)
Engine Specifications
Manufacturer Shangchai
Model SC27G830D2
Engine output-prime 565kW
Engine output-standby 610kW
Frequency: 50Hz
Speed: 1500rpm
Cylinders no. & Type: 12 cylinders, V line, 4 stroke, diesel engine, water-cooled
Aspiration: Turbo charged and air-to-air intercooled
Bore*stroke 135*155mm
Displacement 26.6L
Compression Ratio 16:1
Governor Electronic speed governor
Starter motor voltage: 24V DC
Type Injection System: direct injection
Oil pan capacity(High/Low): 65L-55L
Cooling way Water Radiator & fan
Water capacity: 48L(engine only)
Fuel consumption-standby power (100%) 151.6L/h
Fuel consumption-prime power (100%) 138.1L/h
Fuel consumption-prime power (75%) 102.7L/h
Fuel consumption-prime power (50%) 68.7L/h
Dingbo Power company cooperates with many well-known diesel engine companies from reputable brands like Cummins, Deutz, Yuchai, Shangchai, Weichai, Ricardo, MTU, Doosan, etc., and supply reliable diesel generator sets from 25kVA to 3725KVA.
Long service life and low maintenance.
Smooth operation, high efficiency, low noise and small vibration.
Strong sudden loading capacity and strong power.
Low emission and economic environmental protection.
Beautiful & practicably design for diesel generator sets of open type, silent canopy type, containerized type, mobile trailer type and mobile car power station.
Compliance with all main standards, such as : GB/T2820, ISO9001, ISO14001, ISO45001, CE, Euro Stage II, Euro Stage III, EPA Tier 2 Tier 3 Tier 4 standard.
Remote operation, troubleshooting and maintenance of generator sets with Dingbo cloud service platform.
Perfect after-sales network and global warranty service.
Company Contact:
Contact Name: Miss Laura
Company Name: Guangxi Dingbo Power Equipment Manufacturing Co., Ltd
Email:
Tel: +86 771 5805 269
Fax: +86 771 5805 259
Street Address: No.10,
Kechuang road, Gaoxin
District nanning, Guangxi
530009 China
Website: https://www.dbdieselgenerator.com/
Member name: DingboPowergenerator
Country: China
Member Since: 20 March 2024
Total Leads: 54 DingboPowergenerator Import Export Business Leads
Business focus: Generators, Diesel Generators, Generator Sets, Gensets
Chat:
