Product Description:

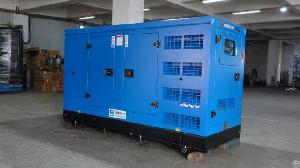

50KW 63KVA Diesel Generator Set Datasheet
Genset model DB-50GF
Prime power 50kW 63kVA
Standby power
55kW 69kVA
Rated voltage(V) 400/230 (customizable)
Rated current(A) 90A
Power factor 0.8
Frequency(Hz) 50
Speed(rpm) 1500
Phase: 3 phase 4 wire
Noise level: 105dB at 7m ( open type diesel genset)
75dB at 7m(silent type diesel genset)
Engine Specifications
Manufacturer Weichai
Model WP4.1D66E200
Engine output-prime 60kW
Engine output-standby 66kW
Frequency: 50Hz
Speed: 1500rpm
Cylinders no. & Type: 4 cylinders, Inline, 4 stroke, diesel engine, water-cooled
Aspiration: Turbocharged&No-Intercooling
Bore*stroke 105*118mm
Displacement 4.087L
Compression Ratio 17.5:1
Governor Electronic speed governor
Starter motor voltage: 24V DC
Type Injection System: direct injection
Battery charger current 55A
Oil pan capacity: 13L
Cooling way Water Radiator & fan
Coolant capacity of the engine: 9.4L
Thermostat opening temperature/full open temperature 76/89°C
Max. fuel inlet temperature 70°C
Min. diameter of inlet pipe 12mm
