Product Description:

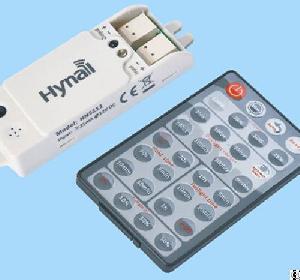

5V/12V DC Input Microwave Motion Sensor – Highbay Version
DC Input Motion Sensor Module
Highbay DC
Input Motion Sensor
Hns111hb
Features
5.8GHz C-band microwave.
Input voltage 12V DC (5V & 24V DC version available on request).
Input current:≧25mA.
0~10V DC output signal
Super compact, flexible to be integrated into any suitable fixtures.
Dual ﹣ PD technology, real Daylight monitoring function for built-in application.
IR remote commissioning, easy setting and user friendly.
Detection range up to 18m in diameter.
Mounting height: 10~12m.
Operation temperature: -20℃ ~ +70 ℃
RoHS compliant.
Settings(Remote control IR12)
Permanent ON/OFF function
Press “ON/OFF” button, fixture goes to permanent on or permanent off mode, sensor is disabled.
*press "Auto", "Reset" or "Ambient learn" to quit this mode.
Dim +/-
Press "Dim" button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved.
*after desired brightness is locked down, if user wants to dim again reversely, just press the “Dim” button again and then lock down the new brightness again.
Sensor mode
Press "Auto" button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.
Reset function
Press "Reset" button, all settings go back to factory default settings.
Factory default settings--
Sensitivity=100%
Daylight sensor=disable
Hold time=90s
Twilight time=5min
Twilight level=10%
