Product Description:

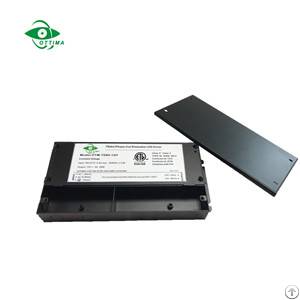

60W junction box triac dimmable LED driver 12v/24v Junction box LED driver price LED driver
60w 12v
24v triac dimmable LED driver power supply with mental junction box class 2 ETL listed
Feature:
Junction box triac dimmable LED driver
Input Voltage: 100-277Vac or 180-240Vac
Pf: 0.98
Dimming range: 0-100%
Protection: short circuit/over loading/over temperature
PMW output, not change the color index
Full protection case, for dry, damp location
Flicker free
Triac/forward and reverse phase (leading and trailing edge)/MLV/ELV dimmer
Cooling by free air convection
7 years warranty
Certificate: CE, RoHs, C-tick, SAA, SELV, ETL, TUV, FCC
60w 12v 24v triac dimmable LED driver power supply with mental junction box class 2 ETL listed
Junction box LED driver Specification:
Part Number OTM-TDJ60-PH12 OTM-TDJ60-PH24
Power 60W
Input voltage 100-277Vac or 180-240Vac
Output voltage 12Vdc 24Vdc
Output current 5A 2.5A
Dimmable Triac dimmable
IP grade IP54
PF >0.95
Dimension 188*90*26mm
Weight 1.1kgs
Pcs/carton 20pcs/carton
Certificate CE, RoHs, C-tick, SAA, SELV, ETL, TUV, FCC
Warranty 7 years warranty
Label We can print your logo free on the led driver
Our LED Drivers include constant current LED Driver, constant voltage LED Driver, waterproof LED Driver, triac dimmable LED Driver, ultra-thin LED Driver, 0-10V/1-10V/PWM dimmable LED Driver, DALI LED Driver, etc
