Product Description:

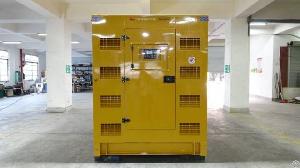

650kW Ricardo Diesel Generator Set Technical Datasheet
Manufacturer: Guangxi Dingbo Generator Set Manufacturing
Co., Ltd
Genset model DB-650GF
Type Open type or Silent type
Prime Power: 650KW/813KVA
Standby Power: 715KW/894KVA
Rated current: 1170A
Rated voltage: 400/230V or as you required
Rated frequency/speed: 1500rpm/50Hz
Power factor: 0.8lag
Phase: 3 phase 4 wire
Noise level: 100dB at 7m ( open type generator)
70dB at 7m(silent type generator)
Dimension (L x W x H): Open type: 4000×1440×2100mm(for reference)
Silent type: 6000 x 2600 x 2800mm(for reference)
Net weight: Open type: 6000kg
Silent type: 12000kg
Ricardo TAD700 Diesel Engine Datasheet
Manufacturer: Ricardo Engine Co., Ltd
Engine model TAD700
Prime power: 782kW
Standby power: 860kW
Frequency/Speed: 1500RPM / 50Hz
Cylinders no. & Type: 6, Vertical in-line, 4 stroke
Aspiration: Turbocharged, air-to-air intercooled
Cooling method Water-cooled
Displacement: 32.8L
Compression ratio 15:1
Governor Electronic
Bore x Stroke(mm): 180 × 215
Start mode: Electric start
Starter motor: 24V DC
