Product Description:
Specifications WSLP-785-030m-4-PD
Min Type Max
Center Wavelength@25℃ 775nm 785nm 795nm
Spectral
Width (FWHM) 2.0nm
Output Power 30mw
Fiber Core 4um
Slope Efficiency 1.1mW/mA
Monitor Current 0.5mA
PD Reverse Voltage 30V
Fiber Connector FC/ST/SMA905
Fiber Length 80cm 100cm
Threshold Current (Typ.) 35mA
Operating Current (Typ.) 115mA
Operating Voltage 2.0V
Package Style Coaxial

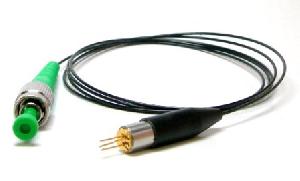

Wavespectrum laser inc can offer 780nm~785nm pigtailed diode laser with single mode fiber
the output power upto 30mw
