Product Description:

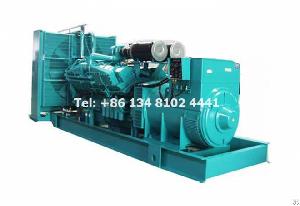

Diesel Generator Set Data
Set Type: XG-80GF
Prime Power: 80KW/100KVA
Rated Current: 144(A)
Rated
Frequency: 50(Hz)
Start-up time: 5~6(s)
Power Factor: 0.8(Lag)
Rated Voltage: 400/230(V)
Standard Features
1. Engine: DCEC Cummins 6BT5.9-G2
2. Radiator 50℃ max
3. Fans are driven by belt, with safety guard
4. 24V charge alternator
5. Dry type air filter, fuel filter, oil filter
6. Alternator: single bearing alternator
7. IP23, insulation class H/H
8. Main line circuit breaker
9. Standard control panel
10. Absorber
11. Muffler
12. User manual
Diesel Engine Data
Manufacturer: DCEC Cummins
Model: 6BT5.9-G2
Standby Power: 92KW
Rated Speed: 1500(r/min)
Cycle: 4 stroke
Cylinder Arrangement: 6 in line
Displacement: 5.9L
Bore and Stroke: 102*120(mm)
Compression Ratio: 17.5:1
Governor Type: Electronic
Start battery voltage: 24V DC
Air Intake System
Air Intake System: Air natural cooled
Max Intake Restriction: 6.35kPa
Burning Capacity: 6.48m3/min
Air Flow: 158m3/min
Exhaust System
Exhaust Gas Flow: 16.8m3/min
Exhaust Temperature: 565℃
Max Back Pressure: 10kPa
Fuel System
Fuel System: A model fuel pump
100% ( Prime Power) Load: 216g/kwh
50% ( Prime Power) Load: 231g/kwh
Oil System
Total Oil Capacity: 16.4L
Oil Consumption: ≤0.4g/kwh
Engine Oil Tank Capacity: 14.2L
Oil Pressure at Rated RPM: 350kPa
Cooling System
Cooling Way: Water-cooled
Total Coolant Capacity: 27L
Thermostat: 82-95℃
Max Water Temperature: 104℃
Alternator Data
Manufacturer: STARLIGHT/ STAMFORD/ SIEMENS/ MARATHON/ ENGGA / KEPU
Excitation Mode: Brushless and self- exciting
Number of phase and Access Act: 3-phase 4-wire
Connecting Type: "Y" type connecting
Alternator Capacity: 103KVA
Alternator Efficiencies: 95%
Overload: (PRP)110% load can run 1h
Protection Level: IP22-IP23
Insulation Class, Temperature Rise: H/H
Telephone Influence Factor (TIF): <50
Thf: <2%
Voltage Regulation, Steady State: ≤±1%
Air Cooling Flow: 0.514m3/s
Altitude: ≤1000m
Genset Electrical Performance
Voltage Regulation: ≥±5%
Voltage Regulation, Stead State: ≤±1%
Sudden Voltage Warp (100% Sudden Reduce): ≤+25%
Sudden Voltage Warp (Sudden Increase): ≤-20%
Voltage Stable Time (100% Sudden Reduce): ≤6S
Voltage Stable Time (Sudden Increase): ≤6S
Frequency Regulation, Stead State: ≤5%
Frequency Waving: ≤1.5%
Sudden Frequency Warp (100% Sudden Reduce ): ≤+12%
Sudden Frequency Warp (Sudden Increase): ≤-10%
Frequency Recovery Time (100% Sudden Reduce): ≤5S
Frequency Recovery Time (Sudden Increase): ≤5S
Options
Engine: Alternator
Heater 2KW & 4KW: Anti Condensation Heater
Battery Charger 3.5A & 7A: Permanent Magnet Generator(PMG)
Water Separator: Drop CT(For Paralleling)
Daily Fuel Tank
Fuel Level Sensor
Control System: Others
Remote Control Panel: Rainproof Type
Auto Transfer Switch (ATS): Soundproof Type
Paralleling System: Trailer Type
Open Type
Overall Size: 2200(mm) *800(mm) *1300(mm)
Weight: 1180(kg)
