9inch Slewing Drive Se9 For Left And Right Input Vertically Opposed Installations

Posted at: Offers to Sell and Export | Posted on: Friday 21 October 2022 4:44 am | Poster last visit: Monday 23 September 2024 |

Product Category: Main » Commercial and Military and Private Vehicles and their Accessories and Components » Transportation components and systems » Drivetrain systems » Drive shafts » 9inch Slewing Drive Se9 For Left And Right Input Vertically Opposed Installations


Product Photo:

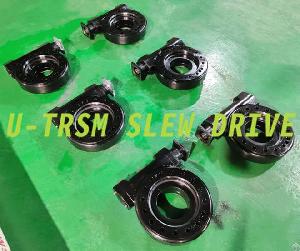

9inch slewing drive se9 left right vertically opposed installations

Similar Products Catalog:
Products Photos Catalog 9inch Slewing Drive Photos Catalog

Product Description:

Model: SE9

Type: left and right input slewing drive


Slewing drive gear ratio: 61:1

Rated output torque:

6.5KN.M

Rotation center diameter: 229mm

Total height with adapter flange: 108mm

Gear backlash ≤0.25mm

SE9 worm gear worm shaft slewing drives are used in the field of industrial automation. A left input slewing drive and a right input slewing drive are installed and used relatively vertically, the motors are all facing the outside of the device after installation.

During the model selection, we always hear from customers that vertical installation and use of slewing drives are prone to various problems. For example, the two slewing drives jointly drive a workpiece to be rotated. Customers are worried that the two slewing drives can’t be synchronized, resulting in the inability to rotate. They were also concerned that the two worm shaft slewing drives couldn’t be synchronized when rotating, resulting in stuck.

Customers have such concerns either because they have had similar problems in the previous use process or they are worried that there will be problems when they use for the first time. We often encounter these working conditions and the feedback on the use of our products sent to customers is good. As long as the models are properly selected and the product qualities are good, the slewing drives can be installed and used vertically.

The two slewing drives drive a workpiece to rotate at the same time and the synchronization can be easily achieved by using a hydraulic motor or a servo motor. It only needs to reasonably control the hydraulic motor or servo motor to synchronize.

The double worm shaft slewing drives can also be driven by hydraulic motors or servo motors to achieve synchronous and smooth rotation. As long as the double worm shaft slewing drives have high precision and flexible rotation when they leave the factory, we hope our experience will help you in your design and selection.
