Product Description:
Jsinx02

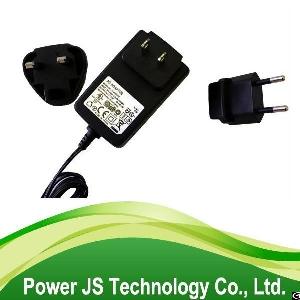

Interchangeable adapter
rohs ac adapter output 12v 2a interchangeable switching adaptor
Products
highlights :
Peak load 4.8A for normal input。
MTBF 50K hours; ( MIL - HDBK - 217F)
ESD : air discharging ± 15KV, contact discharging ± 8KV
Operating Temp Range ( -5°C to + 40°C. )
Key Applications of 15W series
Its suitable for an extremely wide Range of applications;including :
General power supply;
Output required by mobile hard disk
multimedia player and other electronic product
Set - top - box
Adsl
Hard disk drive
Audio & Video product
Household appliance
Input :
Input Voltage : 90 to 264 VAC
Frequency : 47-50 / 60-63hz
Input current : 0.8A (Max) 120 / 240VAC
Inrush current : 50A Max. 240VAC
Leakage current : 0.25 mA Max
Output :
Output Voltage : 3 - 30 VDC
Power : 24W Max.
Output current : 0.3 - 3A
Over voltage protection
Over current protection
at 110 - 200% of lo and Auto-recovery
Electronic short circuit protection
Ripple & noise 20 MHZ band width:200mV
Efficiency 84.26% Measured at 25
Operating temperature 0°C ~ + 40°C. ; Free convection
Operating humidity 10 - 90% RH Non Condensing
No load power less than 0.3w
Sea level Non - operating temperature -20°C to + 80°C.
