Product Description:
AC Input Microwave Motion Sensors
Microwave Sensor AC Input

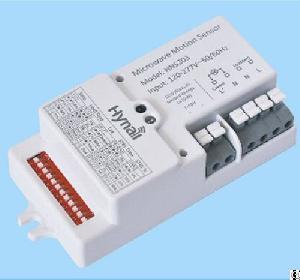

AC Input Microwave Motion Sensor - Standard
Version
Hns203
Features
5.8GHz C-band microwave motion sensor, tri-level dimming control.
Operating voltage: 120〜277V AC, 50/60Hz.
Rated load: 400W@120VAC, (capacitive)
800W @ 200〜277VAC, (capacitive)
Stand-by power: <1w.
Dual-PD technology, real Daylight monitoring function for built-in application.
Zero-cross point operation, protect the sensor relay against the in-rush current, secure the max. load and life time of the relay.
Detection range up to 12m in diameter.
Mounting height: 3~6m.
Operation temperature: -20℃~ +70℃
RoHS compliant.
IP rating: IP20.
Settings
Detection range
Detection range can be reduced by selecting the combination on the DIP switches to fit precisely each application.
Hold-time
Hold-time means the time period to keep the lamp on 100% after motion detected.
*when hold-time set as 3s, sensor enters into test mode, this test mode is mainly for users to choose the desired detection range.
In this mode, the daylight sensor is disabled, when there is no motion, fixture keeps off, when there is motion detected, fixture keeps a cycle of 3s on and 2s off.
Daylight sensor
Daylight sensor means the daylight threshold to enable or disable the sensor function.
"Disable": The sensor works always, even during daylight.
w50luxw: The sensor works only in twilight.
"10lux, 2luxw: The sensor works only in the dark.
Stand-by period
This is the time period that the lamp remains at a low light level before it is completely switched off in the long absence of people.
"+∞": means bi-level dimming control, the fixture never switch off.
Stand-by dimming level
This is the dimmed low light level you would like to have after the hold-time in the absence of people.
*0% means on/off control.
10%--Vdim=1.5Vdc 30%--Vdim=3.0Vdc 50%--Vdim=5.0Vdc
More information please view here.
