Product Description:

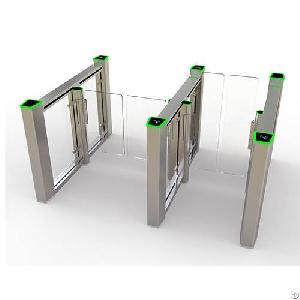

Access control speed gate turnstile, automatic speed turnstile gate is designed with a slim and stylish
look for narrow entry areas
Access control speed gate turnstile JDSG-19 is designed with slim, elegant and stylish apperance and minimal footprint, operating In a smooth, fast and reliable way, ensuring a perfect balance between the stability of the equipment and aesthetics of the surrounding interior needs. By using the advanced detection system, it can accurately tracks the passage of a single authorised user and effectively prevents fraudulent or unauthorised entry. Becausee of the unque design and rapid throughput, speed optical turnstile gate JDSG-19 is often installed in upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere else where autonomous entry and aesthetics are important.
Access control speed gate turnstile JDSG-19 is an efficient crowd control solution with the combination of a high bidirectional flow of passage with high levels of security, effectively organizing passageways with increased requirements for design and comfort of passage. Finally, it provides single directional and bi-directional entry control, and automatically release the passage for free access in case of power failure or emergency.
Access Control Speed Gate Turnstile Featurers
1. Accurate tailgating detection
2. Precision controlled movement of obstacles and detection of all obstructions
3. Reinforced detection to enhance user protection and manage passage of luggage
4. Obstacles automatically open to free the passage in case of power failure
5. Minimal footprint for maximum throughput
6. Unique detection algorithm prevents fraudulent entry with greater user safety
7. Smooth integration of proximity, magnetic card readers, biometric scanners and other user authentication systems
8. Transparent and elegant design
9. High-density matrix of infrared beams follows users’ progression through the gate
10.The swing panels are available in heights of 1.2m, 1.4m or 1.8m to provide increasing levels of security as required.
Access Control Speed Gate Turnstile Applications
Offices
Banks
Public institutions
Data centres
Sensitive sites
Schools and universities
Access Control Speed Gate Turnstile Parameters
Housing Material: #304 stainless sheet
Dimension: 1500 x 160 x 1020mm
Power Supply: AC220V / AC110V, 50/ 60 Hz
Channel Width: 600~900mm
Drive Motor : DC 24V brushless motor or servo motor
Pass Speed: 35 ~45 persons per minute
Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction: Bi-directional
Communication interface: RS485
Gate open when power failure: Yes
Open Time: 0.2 second
Life Cycle: 5 million times
Working Temperature: -30°C~+70°C
Working Environments: Indoor, outdoor (with shelter)
