Product Description:

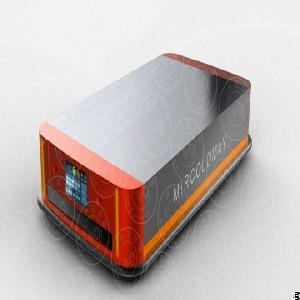

I-SO Hera 3000 overloading type AGV is designed for those cars assembly and general large-scale mechanical
manufacturers, satisfying automated connection with large grippers or other auxiliary equipment and finishing the large-scale assembly technology, such as wind-driven generator, car assembly, mechanical assembly and metallurgical steel logistics. It can be used in fixed stations to achieve synchronous transmission with large artifact assembly.It belongs to overloading type AGV with high-strength aluminum alloy as its body material and high-torque transfer part design. Led by magnetic stripe, it has a high-accuracy localization,, its carrying weight’s reaching to 3 tons meets the most assembly needs of locomotives.It is equipped with independent data communication function, making it more convenient for station staff or device to connect and communicate.It involves multiple auxiliary assembly device control system and offers application ports, its Android control system and humanized surface design make it even more convenient for customers to operate, moreover, its multiple obstacle-avoidance system has won many national patents.Large-capacity battery and low power consumption design enables it to work successively more than 24 hours after one charge.
Specification
Leading method:magnetic Strip Navigation (two way)
Driving method:double-wheel differential drive +four-wheel drive
Carrying weight:1000kg (standard)/3000kg (overloading)
Length *width *height:1650 mm*1000 mm*340 mm (customizable)
Moving speed: about 20 m/min
Minimum turning radius:700mm
Precision:+10mm
Uninterrupted working time:more than 24 hours
Security feature:non-contact obstacle sensor, mechanical anti-collision, emergency switch, voice prompt
Key words: automated guided vehicle, magnetic stripe navigation, agv car, transfer robot
