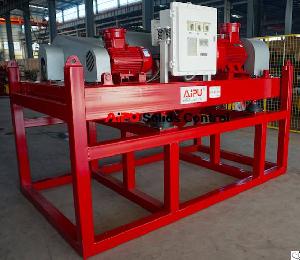

Aipu Solids Control Decanting Centrifuge Used In Well Drilling Mud System
Posted at: Offers to Sell and Export | Posted on: Thursday 10 August 2017 2:03 am | Poster last visit: Thursday 4 January 2018 |
Product Category: Main
» Mining and Well Drilling Machinery and Accessories
» Oil and gas drilling and exploration equipment
» Drilling and workover rigs and equipment
» Mud cleaning equipment
» Aipu Solids Control Decanting Centrifuge Used In Well Drilling Mud System
Product Description:
Aipu solids control manufacture complete line solids control equipment, decanter centrifuge included
in. In well drilling mud system, there are 4 phases solids control equipment. Centrifuge decanter is the 4th phase solids control to get rid of 2~7 microns particles.
Separation point of decanter centrifuge is as fine as 2~7 microns. According to different rotation speed, there are high-speed and middle-speed centrifuges. It really plays an important role in lower mud density and bentonite recovery.
AIPU Decanter Centrifuge Parameters
Model APLW450×842N APLW450×1000N APGLW355×1258D-N APGLW450×1258D-N APGLW530×1320D-N
Drum Dia. φ450mm φ450mm φ355mm φ450mm φ530mm
Drum Length 842mm 1000mm 1258mm 1258mm 1320mm
Lambda Ratio 1.9 2.2 3.5 2.8 2.5
Drum Shape Conical
Speed 1800rpm 2200rpm 3200rpm 3000rpm 2800rpm
Main Motor 22Kw 30Kw 30Kw 37Kw 55Kw
Accessorial Motor 5.5Kw 7.5Kw 7.5Kw 11Kw 11Kw
Max. Capacity 40m³/h 50m³/h 35m³/h 60m³/h 65m³/h
Separation Point 5~7microns 2-5microns
Separation Factor 815G 1215G 2035G 2250G 1817G
Feeding Pump Power (KW) 4(submersible) 5.5(submersible) 7.5(submersible)
Dimension (mm) 2600×1550×1650 2750×1550×1700 2900×1480×1650 2900×1550×1650 3300×1700×1750
Weight 3000kg 3200kg 3000kg 3200kg 4000kg
Features Of AIPU Decanter Centrifuge
1. Bowl Cylindrical and the Conical section made of Duplex Stainless Steel 2205 by centrifugal casting. Other parts of the bowl assembly are made of stainless steel 316L.
2. Screw protection: Tungsten Carbide Tiles for longer life and easier replacement.
3. Screw flow distribution port and bowl solids discharge port protected by tungsten carbide alloy.
4. Easy to adjust liquid discharge weir height for flexible application.
5. Bowl assembly supported by the tighter belt for the protection of bearing in moving.
6. Pressurized EX Proof VFD control cabinet available.
7. Genuine SKF bearing for longer and reliable operation.
