Air-swept Coal Ball Mill

Posted at: Offers to Sell and Export | Posted on: Friday 12 July 2013 3:34 am | Poster last visit: Tuesday 20 August 2013 |

Product Category: Main » Mining and Well Drilling Machinery and Accessories » Mining and quarrying machinery and equipment » Crushers and breakers and grinders » Ball mills » Air-swept Coal Ball Mill

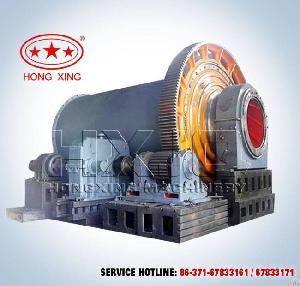

Product Photo:

air swept coal ball mill

Similar Products Catalog:
Products Photos Catalog Air Swept Coal Ball Photos Catalog

Product Description:

FOB Price: US $1, 199 - 290, 000 / Set

Port: Qingdao, Tianjin, Shanghai or others


Minimum Order Quantity:

1 Set

Supply Ability: 100 Sets per Month as requested

Payment Terms: L/C, T/T, Western Union, Money Gram, D/A, D/P

Hongxing brand is rated as "China Famous Brand" for superb performance.

Quick Details

Type: Rotary Drying Equipment Place of Origin: China (Mainland) Brand Name: Hongxing

Model Number: Refer to specification Certificate: ISO9001:2008 Application: Cement

Motor power: 18.5-125 kw Weight: 47.5-278 t

Packaging & Delivery

Packaging Detail: Standard containers, bare main machine, motors and small parts are packed in wooden cases.

Delivery Detail: 25 working days after placing the order

Specifications

8-50t/h capacity air-swept coal mill:1. Good stability 2. Easy operation3. Precise control, energy saving4. Excellent performance

Introduction to the Air-swept Coal Mill

The air-swept coal mill is used for grinding and drying all kinds of coals with different degrees of hardness and it mainly consists of the feeding device, the main bearing, the rotary body, the transmission device, the feed port and the discharge port, high voltage starting device and the lubrication system. Widely used in cement, building materials, coal-fired power generation, metallurgy and chemical industry, the air-wept coal mill is the ideal equipment due to its reasonable structure and high grinding efficiency.

Working Principle

This mill is an edge driving system. It is driven by the electromotor through auxiliary support of the speed reducer and different sizes of gears.The grinding machine adopts the air-swept type with drying silos, making the grinding machine more adaptable to the moisture hidden in the crude coal.The combined configuration of the ladder lining board, the double-ladder lining board, corrugated lining board respectively improves the grinding capacity. The feeding device adopts shutter structure in the form of oblique inlet flow, strengthening the heat transfer ability and effectively preventing the feed port plugging . The crude coal gets into the feed port. Meanwhile, the hot air with the temperature of 300 ℃ goes to the same device. The special spread boards in the drying silo lift the coal and through heat exchange, the coal is dried. Then the coal gets into the grinding silo, which is equipped with the grinding medium( steel balls)by the double-deck partition panel. The coal lumps are then crushed into powders. At the same time, the powders will be carried out by the special induced draft fan. The more coarse particles will be withdrawn to the grinding silo for further crushing.
