Product Description:
Are you looking for air analyzer equipment?
Overview

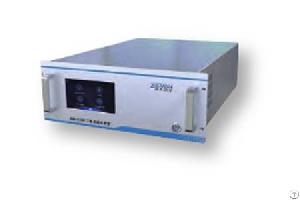

AM-5100 SO2 air pollution analyzer adopts
ultraviolet fluorescence technique and combines advanced micro processing technology, which could provide accurate and reliable SO2 detection at low level ppb~ppm, So we can also call it portable so2 analyzer. This analyzer can be applied to atmospheric monitoring and dilution-based CEMS system.
Features Of AM-5100 SO2 Analyzer
Measurement range 0~500ppb to 0~20ppm, user selectable;
High efficiency hydrocarbon remover and unique optical design, strong anti-interference ability;
Dark current compensation at fixed time, high stability;
Self checking function of light intensity attenuation;
Adaptive signal filtering technology to optimize response time;
Large capacity memory, automatic storage of historical data.
Application Of AM-5100 SO2 Analyzer
Atmospheric monitoring
Specification Of AM-5100 SO2 Analyzer
Range: 0~500ppb, wide range 0~20, 000ppb (optional)
Unit: ppb, ppm, ug / m3, mg / m3
Zero Point Noise: <0.2ppb (RMS)
Low Detection Limit: 0.4ppb
Zero Drift: <1ppb / 24h
Team Operation: <5ppb / 24h
Response Time: <120s (T90)
Linearity: <1%/F.S.
Repeatability: <1%
Sampling Flow Range: 800SCCM±10%
Ambient Temp.: 5°C~40°C
Dimension: 178mm × 430mm × 635mm
Weight: <15kg, external pump 5kg
Power: 200V~240V, 50/60Hz, 400W
Analog Output: 10V, 5V, 1V, 0.1V (optional)
Comm.: RS232, RS485
