Product Description:
Overview

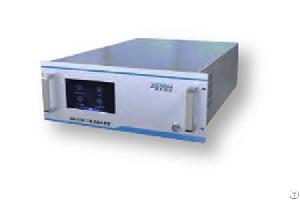

AM-5100 SO2 analyzer adopts ultraviolet fluorescence technique and combines advanced micro
processing technology, which could provide accurate and reliable SO2 detection at low level ppb~ppm.This air analyzer equipment can be applied to atmospheric monitoring and dilution-based CEMS system.
Features Of AM-5100 SO2 Air Pollution Analyzer
Measurement range 0~500ppb to 0~20ppm, user selectable;
High efficiency hydrocarbon remover and unique optical design, strong anti-interference ability;
Dark current compensation at fixed time, high stability;
Self checking function of light intensity attenuation;
Adaptive signal filtering technology to optimize response time;
Large capacity memory, automatic storage of historical data.
Application Of AM-5100 SO2 Analyzer
Atmospheric monitoring
Specification Of AM-5100 Portable So2 Analyzer
Range: 0~500ppb, wide range 0~20, 000ppb (optional)
Unit: ppb, ppm, ug/m3, mg/m3
Zero Point Noise: <0.2ppb (RMS)
Low Detection Limit: 0.4ppb
Zero Drift: <1ppb/24h
Span Drift: <5ppb/24h
Response Time: <120s (T90)
Linearity: <1%/F.S.
Repeatability: <1%
Sampling Flow Range: 800SCCM±10%
Ambient Temp.: 5℃~40℃
Dimension: 178mm×430mm×635mm
Weight: <15kg, external pump 5kg
Power: 200V~240V, 50/60Hz, 400W
Analog Output: 10V, 5V, 1V, 0.1V (optional)
Comm.: RS232, RS485
