Product Description:

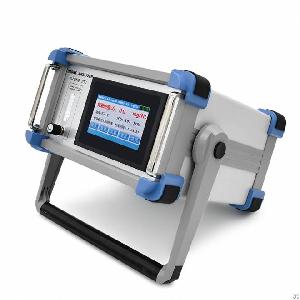

Ozone-300 series ultraviolet high concentration OZONE analyzer is designed and manufactured with reference
to Lambert-Beal law, and according to the environmental standards "determination of ambient air ozone - ultraviolet photometry" and "Ozone generator for water treatment" calibration and calibration methods. By measuring the change in the intensity of the light signal before and after the absorption of ozone to ultraviolet light, the current ozone concentration value is calculated. The equipment uses an advanced double optical path ultraviolet light source system, which is equipped with a lamp intelligent management system. After starting, the ultraviolet lamp can quickly reach the measurement state. The equipment has the characteristics of no leakage, high pressure resistance, large flow sampling gas impact resistance, easy to clean, easy maintenance, simple operation and low cost. It is mainly used for continuous detection of ozone gases in various industrial environments, and can also be used to detect ozone gases in pipelines, containers and other environments in operation. It is widely used in pharmaceutical, chemical, municipal, sewage treatment and other industries to measure the ozone generator export concentration and ozone generator output.
Product characteristics
The ozone analyzer has a touch screen interface to display the concentration of ozone gas in real time.
With pressure and temperature compensation and display, automatic zero calibration time and manual zero calibration mode can be set.
High concentration (g/Nm³) range with flow input function to display ozone generator output in real time.
With two sets of relay signal output, users can freely choose high alarm point and low alarm point signal output connection.
The core component adopts purple long-life light source system and adopts quartz sheet with high light transmittance to ensure the stability of zero point and prevent zero drift from affecting the accuracy of detection concentration.
According to the design of foreign optical cell technology, the pressure resistance and impact resistance of the independent optical cell structure, the gas flow, pressure and velocity remain unchanged during the zero operation to prevent the impact of air flow on the zero operation, the zero operation can be completed without closing the ozone intake to ensure that the equipment can run continuously 24 hours a day.
