Antesky 3.7 M Earth Station Antenna
Posted at: Offers to Sell and Export | Posted on: Monday 31 August 2009 2:17 am | Poster last visit: Thursday 14 April 2011 |
Product Description:

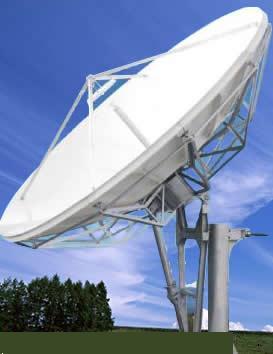

Antesky 3.7m Earth Station Antenna
Earth station antenna, C band antenna, KU band antenna, VSAT antenna,
Satellite dish antenna, RX antenna, Microwave antenna, SNG antenna
3.7m antenna reflector incorporates stretch-formed doubly contoured panels with matched radials and hub for ease of field alignment.
antesky science technology inc. is a specialized company engaged in the design and manufacture of satellite communication earth station antenna and relevant servo equipments, and radar telemetry and telemonitor antenna servo sub-system. we have a selected range of vsat antenna (ku-band, c-band, ka-band), non-penetrating roof mounts, earth station antenna control system and tracking systems.
Features
Meets or Exceeds CCIR 580 and INTELSAT Requirements
High G/T, Excellent Pattern Characteristics
Thermal Spaying Zinc Steel Ground Mount Assembly
C-band Antenna Operating in 800MHz Bandwidth Option
2-port, 3-port or 4-port Linear/Circular Feed
Field Changeable Feed System, Switchable Circular to Linear C-band
Antenna Az 0-360deg Continuous Pointing Range
Specification
electrical specification:
Operating Frequency, GHz
C-Band:Rx(3.625-4.2) Tx(5.85-6.425)
Ku-Band:Rx(10.95-12.75) Tx(14.0-14.5)
Polarization:Linear/ Circular Linear
Radiation Pattern:First Sidelobe <= -14, Meet ITU-RS.580-5 and other requirements
mechanical specification:
Azimuth +-60deg (Continuous)
Elevation 0deg-90deg(Continuous)
Polarization 180deg(Continuous)
Finishes Reflector Surface Pedestal & Back Structure Aluminum panels with high-diffusing white paintThermal Spraying Zinc
environmental specification:
Operational Wind 72km/h Gusting to 97km/h
Survival Wind 216km/h
Temperature - 40degC - + 60degC
Relative Humidity 100%
Solar Radiation 1135Kcal/ h/ m2
Seismic (Survival) 0.3g (H), 0.15g (V)
Company Contact:
Contact Name: Byron Xue
Company Name: Antesky Science Technology Inc.
Email:
Tel: +86-29-88352448
Fax: +86-29-88352334
Street Address: Zhongtian
International Mansion, Taibai South
Road, Xian, Shaanxi, China
Website: http://www.antesky.com
Member name: antesky
Country:
China
Member Since: 18 February 2009
Total Leads: 41 antesky Import Export Business Leads
Business focus: Satellite Communication Earth Station Antenna
