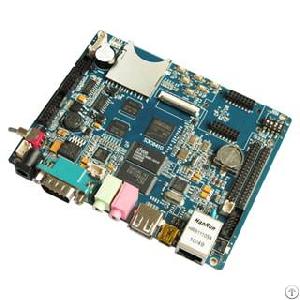

Arm11 S3c6410 Android2.3 Single Board Computer Sbc6410
Posted at: Offers to Sell and Export | Posted on: Tuesday 7 January 2014 7:01 am | Poster last visit: Tuesday 10 February 2015 | Targeted Countries: Brazil | Canada | USA
Product Description:
Boardcon SBC6410 single board computer is based on Samsung S3C6410 - an advanced ARM11 CPU for running
operating system and application code, and for dedicated video processing. Low voltage Mobile DDR enables very low power consumption in regular operation and in standby. For embedded applications, the SBC6410 provides a general purpose local bus, 100Mbit Ethernet, serial ports, I/O lines and other essential functions, while integrated WIFI interface implement industry standard wireless connectivity. The small size and low power consumption of the SBC6410 allows its integration into hand-held and mobile devices, while its low price makes it an ideal selection for cost-sensitive applications. The SBC6410 delivers a price / performance ratio significantly better than that of any other platform.
Feature
* Processor: Samsung S3C6410, ARM1176JZF-S, up to 667MHz.
* 256mb ddr sdram
* 256MB SLC NAND Flash, Samsung K2F2G08, 1G NAND Flash optional
* 2MB NOR Flash, AMD AM29LV160DB
* Source Code for Android2.3, WinCE6.0 and Linux2.6.28
* 1 EEPROM, support I2C, it can be soldered with AT88SC016 for encryption
* SDIO WIFI Module, supporting IEEE802.11b/g
* LCD/Touch Screen interface. Supporting 4.3"/ 7" TFT LCD
* GPIO, ADC, SPI, IIC, I/O, Interrupts and MMC
* Audio I/O, TVOUT
* 10/100M Ethernet (RJ45)
* USB2.0 Host, USB2.0 Device, Serial ports, SD/MMC interface
* Camera interface (support the mode of ITU-R 601/656 8bit)
* jtag
* Power supply: +12V
* Optional module: GPS, GPRS, WIFI, Camera, USB HUB+4x4 Matrix Keyboard, USB 3G Modem, Bluetooth
* Board Dimension: 116.6 mm x 76.8 mm x 17mm
About Design Services
Boardcon can provide the embedded hardware and software you need to meet your embedded project requirements. When the addition of your feature can economically be included in one of our existing SBCs, we will modify the board for a semi-custom solution. When needed, we will develop a new embedded SBC or peripheral board to meet your requirements.
Company Contact:
Contact Name: Woo
Company Name: Boardcon Technology Limited
Email:
Tel: +86-755-26481393
Fax: +86-755-27571552
Street Address: Room702, Xinan
Business Building, 45zone, Baoan
District
Shenzhen, Guangdong 518133
China
Member name: Boardcon
Country:
China
Member Since: 06 January 2014
Total Leads: 35 Boardcon Import Export Business Leads
Business focus: Single Board Computer, Som, Embedded Design
Chat:
