Arm9 Embedded System On Module Mini2416
Posted at: Offers to Sell and Export | Posted on: Friday 10 January 2014 6:59 am | Poster last visit: Tuesday 10 February 2015 |
Product Description:

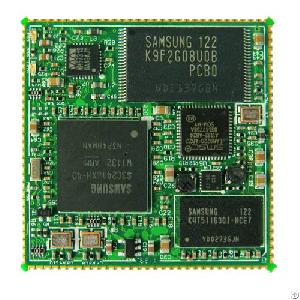

Boardcon MINI2416 is a cost-effective ARM9 SOM based on the Samsung S3C2416X, which operates up to 400MHz,
and is designed for projects requiring low power consumption and overall cost. It can be used as embedded core for handheld devices, GPS navigation systems, smart phones and other products.
Applications
Industrial control terminal; security monitoring; medical equipment; consumer electronics; POS terminals; interactive interface
Board Dimension
Size: 40mm x 40mm x 8mm
Pin package: 1.27mm pitch SMD
Pin number: 120
Test Point: Built-in
Feature
* CPU: Samsung ARM926EJS S3C2416, 400MHz industrial frequency
* 64mb ddr2 sdram
* 256MB NAND Flash
* Build-in 2D graphics acceleration video card, the resolution is up to 1024 x 768
* 10/100M Ethernet controller: LAN9221 100M high performance integrated Ethernet controller
* Audio chip: WM8731 integrated audio chip
* The modular is led out most signals of ARM9 S3C2416, such as LCD&Touch screen, USB OTG&HOST, Audio I/O, SD card, UART, I2C, SPI, PWM, External interrupt, etc.
* Input voltage: +3.3V@300mA
* Operating system: WinCE6.0, Linux2.6
* Module support: Printer, WIFI, VGA
About Design Services
Boardcon can provide the embedded hardware and software you need to meet your embedded project requirements. When the addition of your feature can economically be included in one of our existing SBCs, we will modify the board for a semi-custom solution. When needed, we will develop a new embedded SBC or peripheral board to meet your requirements.
Company Contact:
Contact Name: Woo
Company Name: Boardcon Technology Limited
Email:
Tel: +86-755-26481393
Fax: +86-755-27571552
Street Address: Room702, Xinan
Business Building, 45zone, Baoan
District
Shenzhen, Guangdong 518133
China
Member name: Boardcon
Country: China
Member Since: 06 January 2014
Total Leads: 35 Boardcon Import Export Business Leads
Business focus: Single Board Computer, Som, Embedded Design
Chat:
Verify: Safe Import Export Tips
