Product Description:

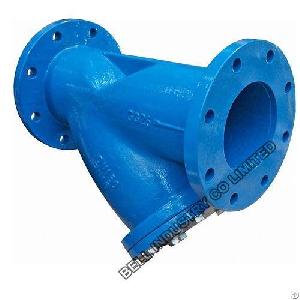

AS4087 Cast Iron Y Strainer Table D-PN10-PN16-GGG50
BS-AS Y-type line strainers protect your fluid handling
system against the damage that can occur to valves, traps and other equipment when foreign matter such as dirt, scale or welding particles travel through the pipeline.
-Design Std: AS2129, AS4087
-Size:DN40--DN600
-mesh size is 40 mesh or 400 micron
-Body, bonnet: FBE Coated Cast Iron (GG25)
-Screen: ANSI 304 Stainless Steel
-coating:epoxy electro static powder
-Pressure Rating: PN16, PN10
-FLANGED: AS2129 Table D/E
-Face to Face: EN 558 Seri 1 / DIN 3202 F1
-Pressure Testing: in accordance with API 598.
-Working temperature: Max. +150°C
