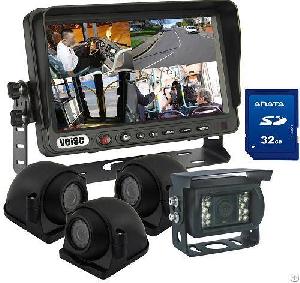

Auto Parts Dvr Quad Monitor Camera System, Rear View Camera System
Posted at: Offers to Sell and Export | Posted on: Thursday 25 October 2012 7:28 am | Poster last visit: Monday 16 June 2014 |
Product Description:
DVR Quad Monitor Camera System able to Show 4 Camera Views at One Time DVR Cyclic Motion Detect Recording
System
Model DF-737DVRAI314
TFT-LCD Monitor DF-737DVR(Built-in DVR and Quad)
Display Screen Size 7" Digital Screen
Display Resolution 800RGB(H) x 480(V)
Color System PAL/ NTSC
OSD MENU Fuction Separately Set Each Camera Trigger Priority Reversing Image Delay Time 0~30s, Mirror/Normal Set DVR: Image/ REC/ REC Mode/ Playback/ System Setting
DVR Video Compression MPEG-4
DVR Audio Compression PCM
DVR Video Resolution 800x600/ 720x480/ 640x480/ 320x240
DVR Video Frame 20 fps at 800x600;30fps at 720x480; 30fps 640x480;60fps at 320x240
DVR Recording Mode Manual, Video Detection(Including Motion Detection), Alarm
DVR Play Back Full Screen
DVR Motion Detection Zoom Setting, sensitivity setting
DVR Video Recording Quality High/ middle/ low
DVR Saving Card Support One SD Card
DVR Saving Capacity Suport One SD Card (256M to 32GB)
4CH Video Input 1.0Vp-p75Ω
Wide View Angle (Up/Down):45/65(Left/Right);65/65(CR>10)
Brightness 380( Automatically Adjust Environment by According)
Contrast Ratio 500:1
Load Dump DC14+67V(Td400mS) 5pulses
Operating Voltage DC 8-32V (System Power Max 20W)
Operation Temperature -20℃～+70℃
Storage Temperature -40℃～+80℃ RH95% Max
External Dimension D*W*D(108*100*28)mm
Weight Approx 450g
Color Camera Side View Camera DF-8033*3
Rear View Camera DF-4103
Image Type 1/3" Color SHARP CCD
Horizontal Resolution: 420TV Lines
Usable Illumination 0Lux (IR LEDs ON for night vision)
Viewing Angle 130 °
Waterproof of Grade IP69K
Shockproof 10G
Video Output 1.0Vp-p75Ω
Operation Temperature -20°C to+70°C
Storage Temperature -30°C~+80°C
Operating Voltage DC 12V(From Monitor)
External Dimensions DF-8033 D*W*D(55*74*63)mm
DF-4103 D*W*D(51*76*38)mm
Weight Approx 280g
Accessories Auto cigarette lighter, User Manual, Full Function Remote Controller
Company Contact:
Contact Name: Rick
Company Name: Veise Electronic Limited
Email:
Tel: 86-020-87233348
Fax: 86-020-87233260
Street Address: Room 1204, Gaoke
Building, No.908, Tianhe Bei Road,
Guangzhou, Guangdong, China, P.C:
510630
Website: https://www.veise.com
Member name: Veise
Country:
China
Member Since: 28 October 2008
Total Leads: 49 Veise Import Export Business Leads
Business focus: Car Rear View System, Reversing Camera System, Car Backup Camera System, License Plate Camera, Rear Vision System
Chat:
