Automatic Flat Ribbon Cable Strip Cut Split Machine

Posted at: Offers to Sell and Export | Posted on: Sunday 20 January 2019 9:25 am | Poster last visit: Sunday 20 January 2019 |

Product Category: Main » Power Generation and Distribution Machinery and Accessories » Electrical wire and cable and harness » Electrical wire » Hook up wires » Automatic Flat Ribbon Cable Strip Cut Split Machine

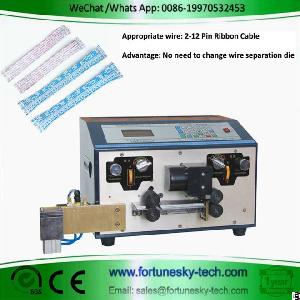

Product Photo:

flat ribbon cable strip cut split machine

Similar Products Catalog:
Products Photos Catalog Flat Ribbon Cable Photos Catalog

Product Description:

This automatic flat ribbon cable strip cut split machine which is an fully automatic ribbon cable separator



cutter stripper that cut & strip & split-to-length on ribbon cable, both-ends stripping, split ribbon cable into individual conductors, change parameters to split different length, no need to change conductor splitter, easy and unmanned operation.

Automatic Flat Ribbon Cable Strip Cut Split Machine Working Vedio:

Technical Parameters

Mode BJ-900+T

Function Flat ribbon cable cutting, both-ends stripping and splitting, intermediate stripping

Applicable Wire Range 2-12 Pin/Way Flat Ribbon Cable

Processing Speed 2000-4000 pieces per hour (decide by wire material)

Cutting Length 0.1mm-99999.9mm

Intermediate stripping nos. 13 strips

Stripping Length Stripping wire head: 0.1-25mm Stripping wire tail:0.1-20mm

Accuracy of entry & outlet wire motor Mute hybrid stepping motor 0.1mm per step

Remark Function Auto-entry wire, Auto-outlet wire, timing start

Driving Mode Six wheels driven

Dimension 510X340X340MM

Net Weight 40KG

Cutter Material Import tungsten steel/Highspeed steel
