Automatic High-temp Wire Stripping Machine

Posted at: Offers to Sell and Export | Posted on: Thursday 19 September 2024 2:39 pm | Poster last visit: Friday 20 September 2024 |

Product Category: Main » Power Generation and Distribution Machinery and Accessories » Electrical wire and cable and harness » Electrical wire » Hook up wires » Automatic High-temp Wire Stripping Machine

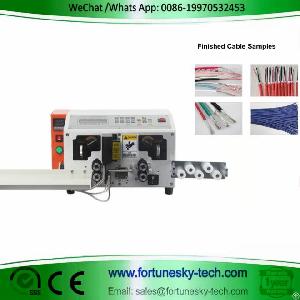

Product Photo:

temp wire stripping machine

Similar Products Catalog:
Products Photos Catalog Temp Wire Stripping Photos Catalog

Product Description:

Introducing the HWN-220: Your High-Temp Wire Stripping Solution

The HWN-220 Automatic High-Temp Wire


Stripping Machine tackles even the most challenging high-temperature wires with ease. This innovative machine boasts a unique combination of features, making it ideal for various applications.

Built for High-Temperature Wires:

Specially Treated Tool Holder: The tool holder can withstand temperatures up to 400°C, allowing for safe handling even during operation.

Imported Heating Tube: The high-performance heating tube reaches temperatures up to 450°C for efficient heat transfer.

Titanium Alloy Heating Gasket: This durable gasket is resistant to rust, corrosion, and oxidation, minimizing blade replacements and maintenance needs.

Unmatched Versatility:

Broad Wire Compatibility: Handles a variety of braided and insulated wires, including braided OD5.5 cotton, cloth thread, leather braided wire, and TPE outer sheath wire.

Wide Range of Processing Parameters: Process wires with diameters from 1.5mm to 6mm, and stripping lengths from 1-35mm (front) and 1-50mm (rear), providing maximum flexibility.

Efficient and User-Friendly Design:

High Production Rate: Delivers an output of 1800-2000 strips per hour per meter, ideal for high-volume production environments.

Adjustable Features: Fine-tune cutting and stripping lengths, wire diameter, stripping pressure, and speed for optimal results on various wires.

User-Friendly Controls: The bilingual (Chinese/English) display simplifies operation and parameter adjustments.

Technical Specifications:

Product Name: Automatic High-Temp Wire Stripping Machine

Model: HWN-220(Thermal)

Dimensions: 450mm x 450mm x 360mm

Weight: 36kg

Display: Chinese/English

Power Supply: AC220V, 50Hz

Power Consumption: 420W

Cutting Length: 1.0mm-999mm

Cutting Tolerance: Adjustable

Stripping Length: Front: 1-35mm, Rear: 1-50mm (material dependent)

Applicable Wire Diameter: 1.5mm to 6mm

Output: 1800-2000 pieces per hour per meter

Tool Material: Tungsten Steel

Stripping Speed: Adjustable (Faster)

Wire Diameter Adjustment: Adjustable

Stripping Quality: Excellent

High Precision Decimal Point: Yes

Drive Mode: Four-wheel Simultaneous Drive

Pressure Adjustment During Stripping: Adjustable

Speed Adjustment: 0-1

The HWN-220 Automatic High-Temp Wire Stripping Machine is a powerful and versatile solution for all your high-temperature wire processing needs. This innovative machine tackles challenging materials with ease, offering exceptional efficiency, user-friendly features, and minimal maintenance requirements.
