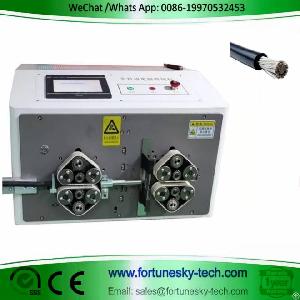

Automatic Max 70mm˛ Welding Cable Cutting Stripping Machine
Posted at: Offers to Sell and Export | Posted on: Thursday 19 September 2024 2:22 pm | Poster last visit: Friday 20 September 2024 |
Product Category: Main
» Power Generation and Distribution Machinery and Accessories
» Electrical wire and cable and harness
» Electrical wire
» Hook up wires
» Automatic Max 70mm˛ Welding Cable Cutting Stripping Machine
Product Description:
Introducing the JT-510: Advanced Wire Processing with Unmatched Precision
The JT-510 redefines wire
processing efficiency with its cutting-edge technology.This versatile machine tackles a wide range of wires, including lamp wires, power cords, flat power cords, and data cables.
Unmatched Control and Efficiency:
Intelligent Power: The 641-bit intelligent control system simplifies operation and optimizes performance. Store up to 100 data sets for quick retrieval and repeat jobs effortlessly.
Touch of Precision: The user-friendly 7-inch touchscreen (available in Chinese and English) provides intuitive control for error-free length cutting and high output rates.
All-in-One Versatility:
Multi-Wire Capability: Process lamp wires, power cords, flat power cords, and data cables with ease. It strips both the outer sheath and core wire of data cables, offering a complete solution.
Wide Range and Precision: Handle wires from 1mm to 70mm˛ (square BV) and 35mm˛ (BVR). Achieve accurate cutting and stripping with a head stripping range of 0.1mm-250mm and tail stripping of 0.1mm-100mm.
Technical Specifications:
Model: JT-510
Dimensions: 680mm x 560mm x 480mm
Weight: 90kg
Display: 7-inch Touchscreen (Chinese and English)
Power Supply: AC220V/50-60Hz
Power Consumption: 800W-1400W
Cutting Length: 1mm-99999mm
Stripping Length: Head: 0.1-250mm, Tail: 0.1-100mm
Cutting Range: 1-70mm˛ (BV Wire), 35mm˛ (BVR Wire)
Suitable for Wires: New energy vehicle wiring harness, rubber wire, PVC wire (BV & BVR)
Tool Material: Tungsten Steel/Imported High-Speed Steel
Drive Mode: Crawler Drive
Wire Stripping Rate: 400-1000 pieces per hour (adjustable)
Wire Pressure Adjustment: Motorized Adjustment
Pulse Equivalent: 1 pulse = 1 step
In-line Error: 0.02mm
Blade Motor Accuracy: 0.1mm per step (Silent Hybrid Stepper Motor)
Additional Features: Automatic outgoing line, automatic incoming line, timing start
The JT-510 offers a powerful combination of intelligent control, unmatched precision, and all-in-one versatility. This advanced machine simplifies wire processing for various applications, ensuring efficient and high-quality results.
Company Contact:
Contact Name: Robin Chiu
Company Name: Shenzhen Fortune Sky Technology Co., Ltd
Email:
Tel: +8619970532453
Fax:
Street Address: No.2 Hongye
North
7th Road, 138 Industrial
Park,
tangxia Town
dongguan,
Guangdong 523710
china
Website: https://www.fortunesky-tech.com
Member name: FortuneSkyTechnology
Country:
China
Member Since: 23 March 2021
Total Leads: 79 FortuneSkyTechnology Import Export Business Leads
Business focus: Wire Stripping Machines, Wire Crimping Machines, Tubing Cutters, Wire Splice Band Machines
Chat:
Verify: Safe Import Export Tips
